Main Features
– 4,650 FH TTSNEW
– 1000 FH since D Check and engines overhauls
– New Magnaghi Landing Gear with Automatic Noce Steering
– Fresh 5-YR Inspection
– Props overhauled in Feb 2021
– Pratt & Whitney PT6A-66 Engines
– Collins Pro Line 21 Avionics Suite
– IFIS 5000 Upgrade + Electronic Charts and Maps Overlay
– ADS-B Out
– JSSI on Engines
– New Paint in 2021

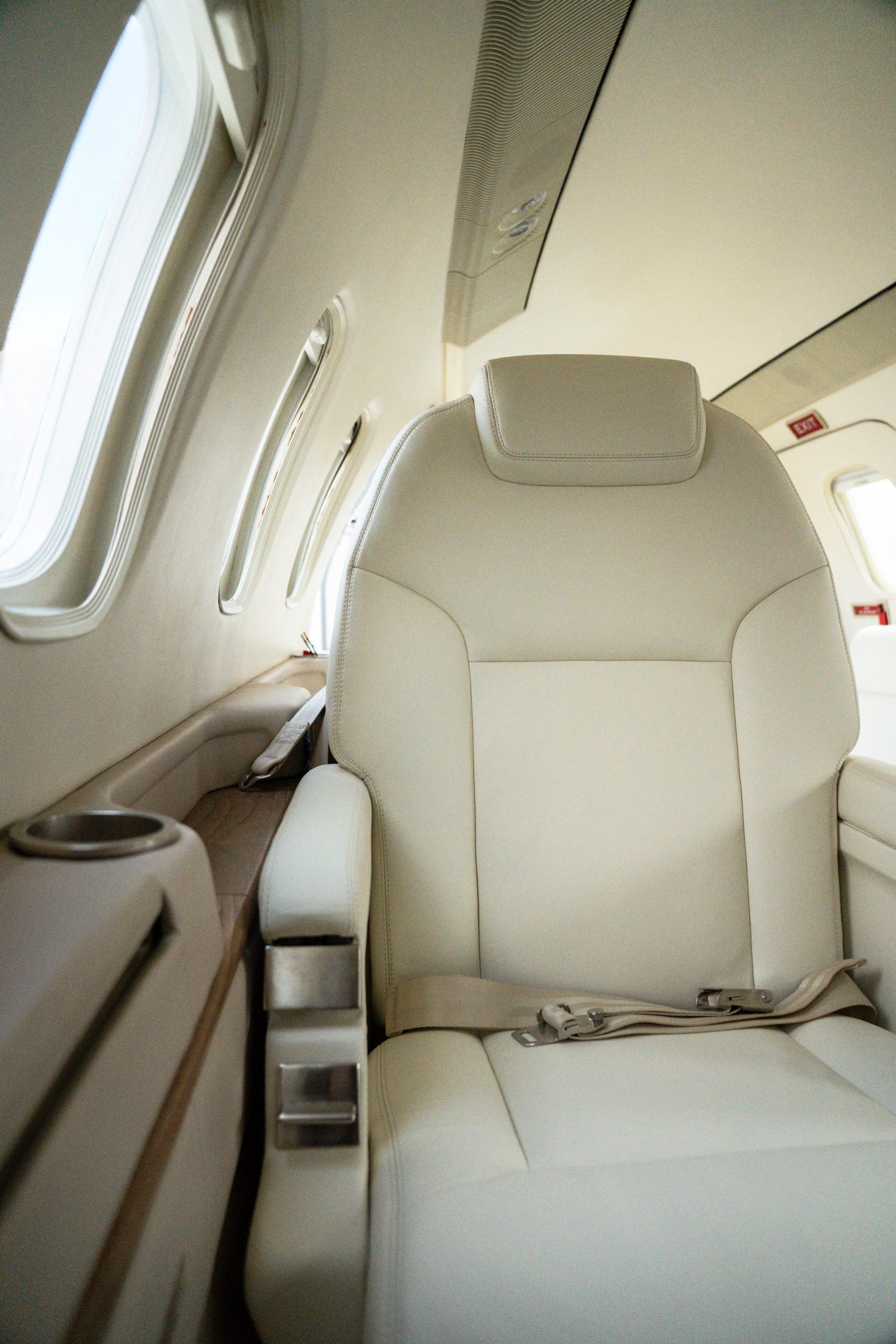

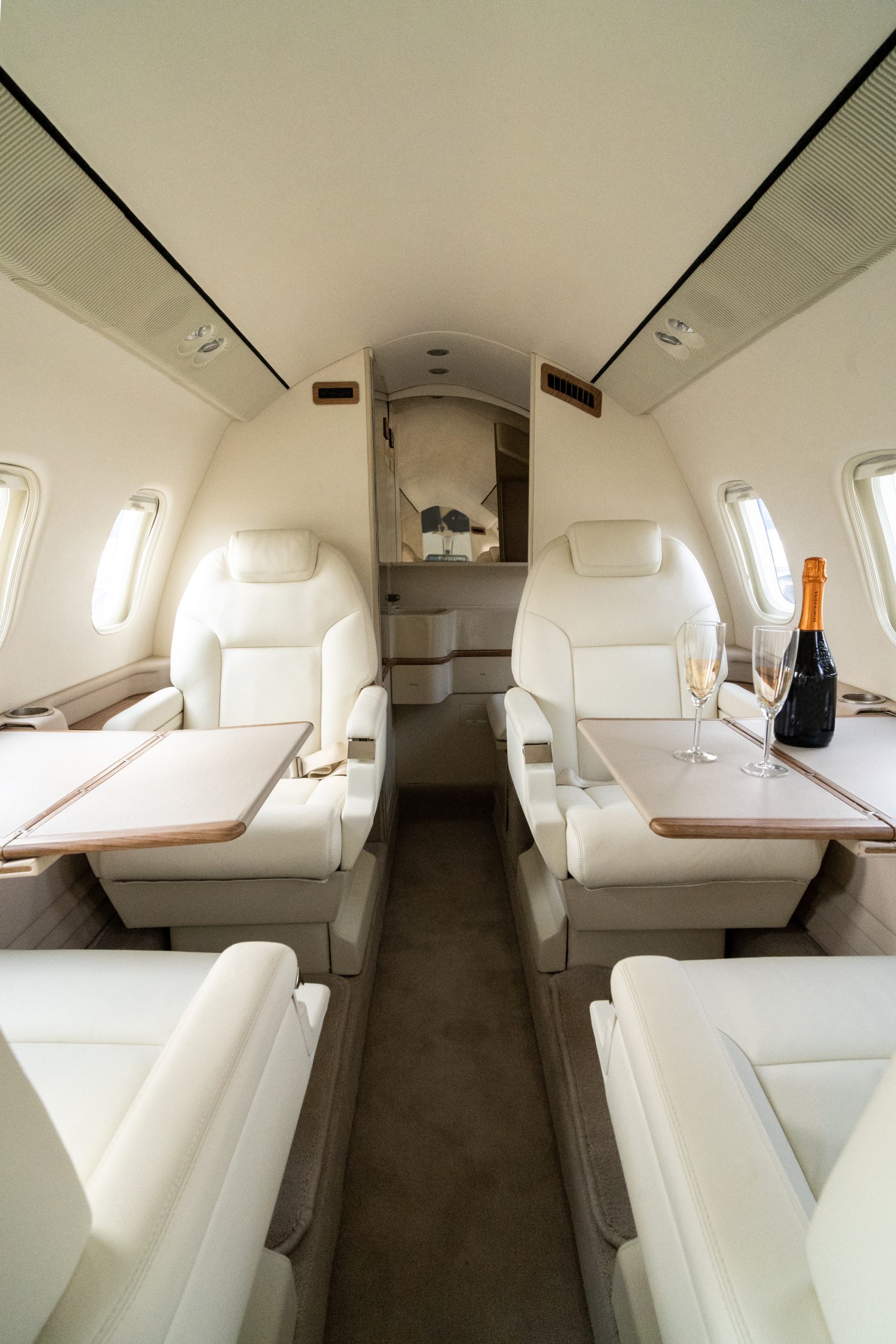

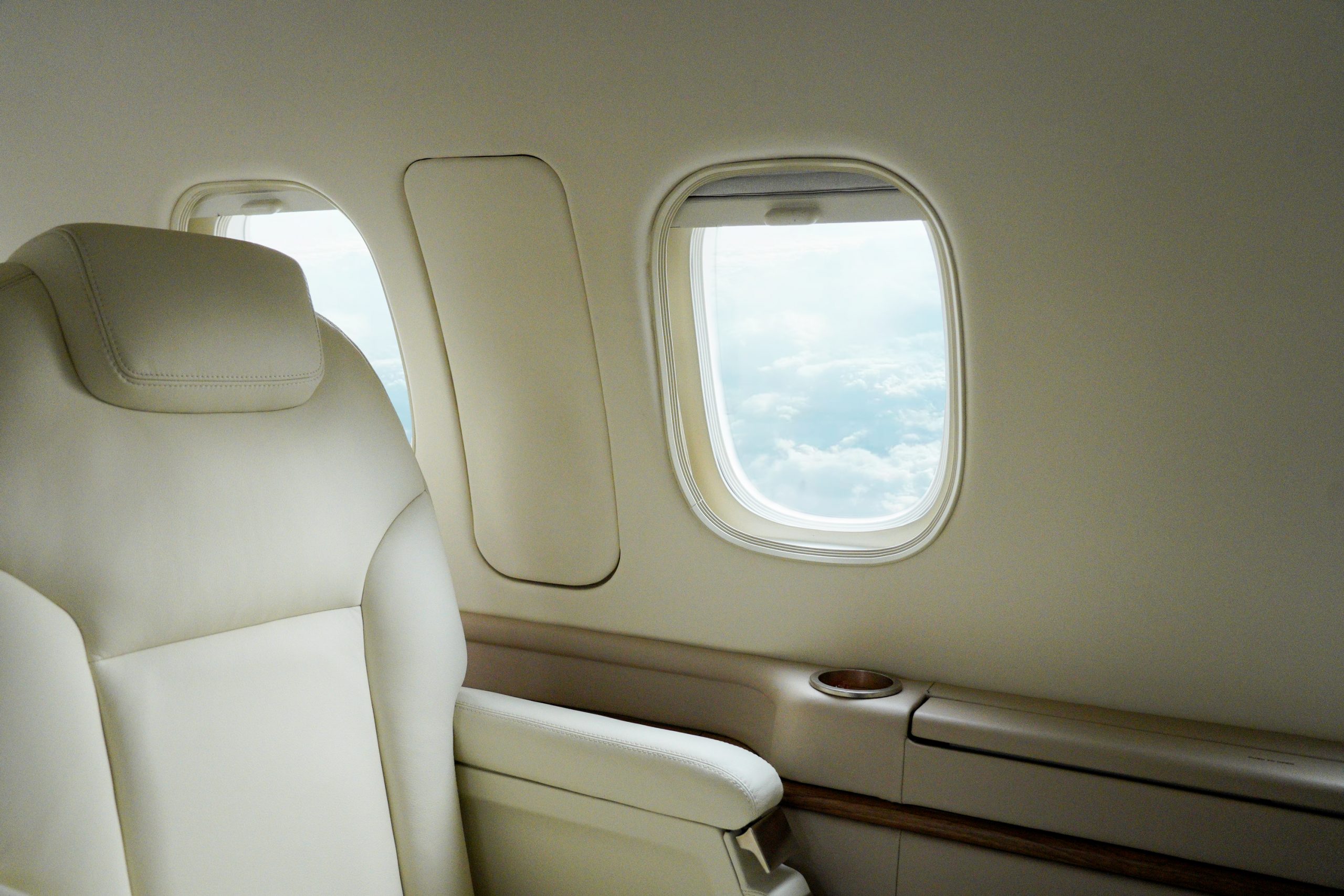

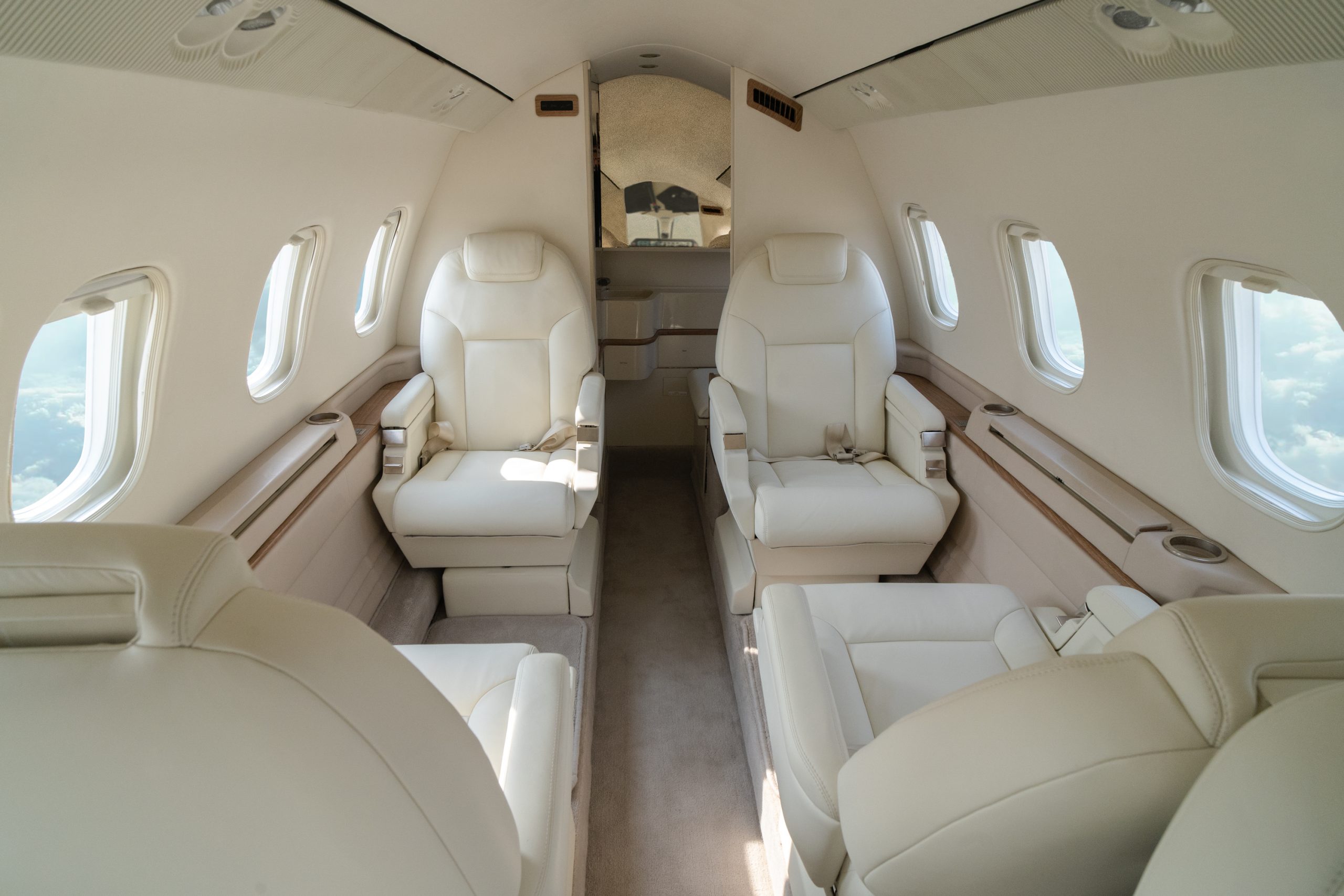

– Refurbished Interior in 2021
– RVSM, Mach 0.7, Cat II Landings & Steep Approach
Engines
2 x Pratt & Whitney Canada PT6A-66
1000 / 1000 FH Since Overhaul
Avionics

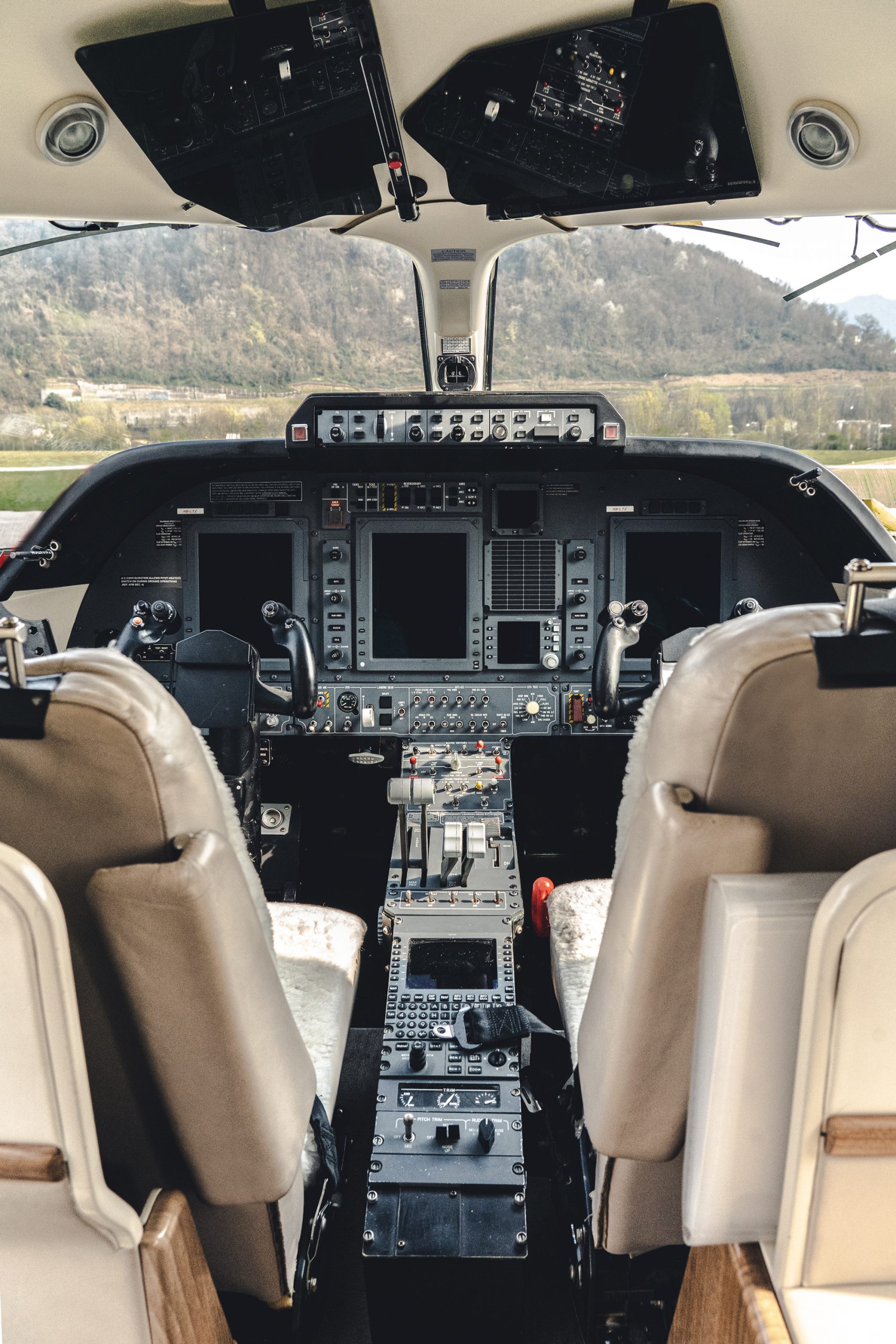

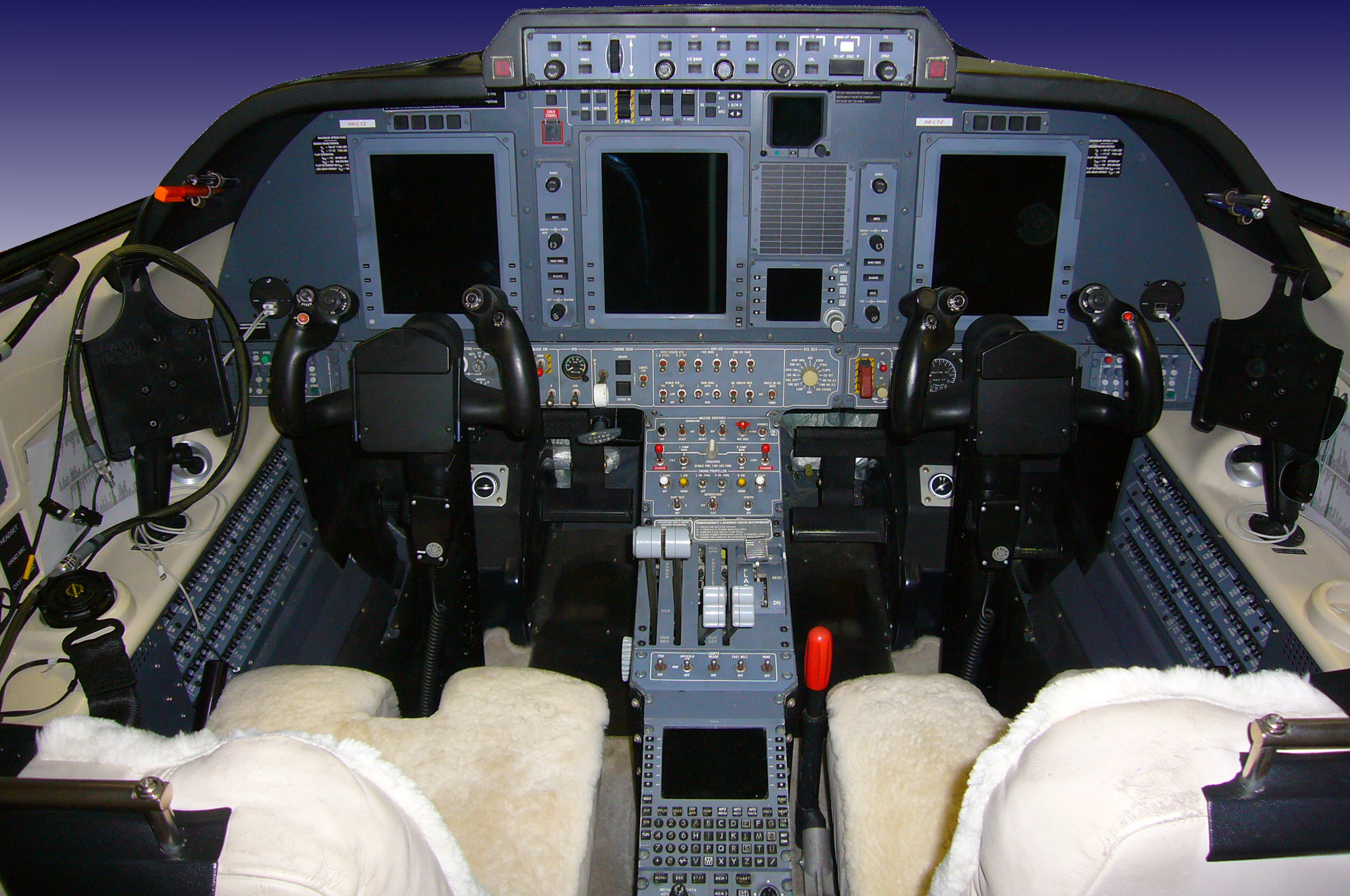

Collins ProLine 21 Avionics Package
- Radio Management System – Collins RTU-4200, CDU-3000
- Dual VHF COM – Collins VHF-4000 Transceiver with Antenna with 8.33 kHz spacing
- VHF NAV 1 + ADF – Collins NAV-4000 VOR/ILS/MKR/ADF Receiver with Antennae
- VHF NAV 2 – Collins NAV-4500 VOR/ILS/MKR Receiver with Antennae
- Single DME – Collins DME-4000 (3 channel) with Antenna
- Dual Mode S Flight ID Diversity Transponder – Collins TDR-94D
- Radio Altimeter – Collins ALT-4000 (Operation to 2500 ft) with Antennae
- Turbulence Detection Weather Radar – Collins RTA-852 Colour Radar with 12″ Antenna
- TCAS I – L-3 Communications SkyWatch HP model SKY899
- TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
- Dual Audio Panel – Baker B1045
- Dual Cockpit Speaker
- Dual hand-held Microphone
- Dual Boom/Microphone/Headset
- EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
- Flight Guidance System – Collins Dual FGC-3003 (A/P,YD and dual Flight Director included), three SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
- Single FMS – Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000 (used also for radiotuning),
- DBU-4100
- GPS Sensor Unit – Collins GPS-4000
- Dual ADS – Collins ADC-3000
- Dual AHRS – Collins AHC-3000 and FDU-3000
- Maintenance Diagnostic System – Collins MDC-3110
- Four Data Concentrator Unit – Collins DCU-3001
- Stand-by Cluster Instrument – L-3 Communications GH-3100
- Emergency Locator Transmitter – Techtest Model 503 (3 frequency)
- Dual Clock (Flight Hour Meter included)
- Dual Master Annunciator
- Dual Turn&Slip Indicator (shown on the displays)
- Reversionary/Miscellaneous Panel
- ADS-B Out
Exterior

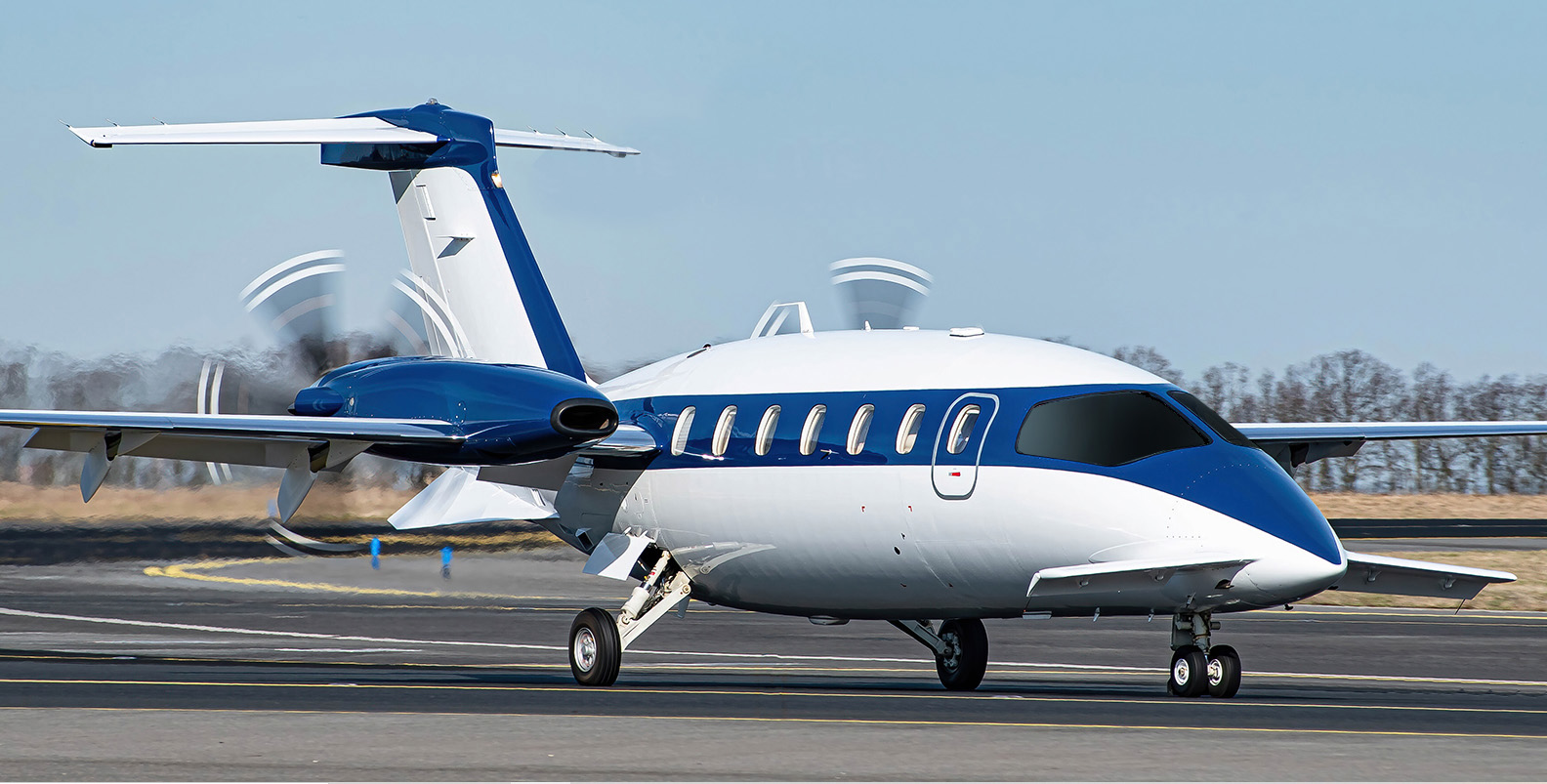

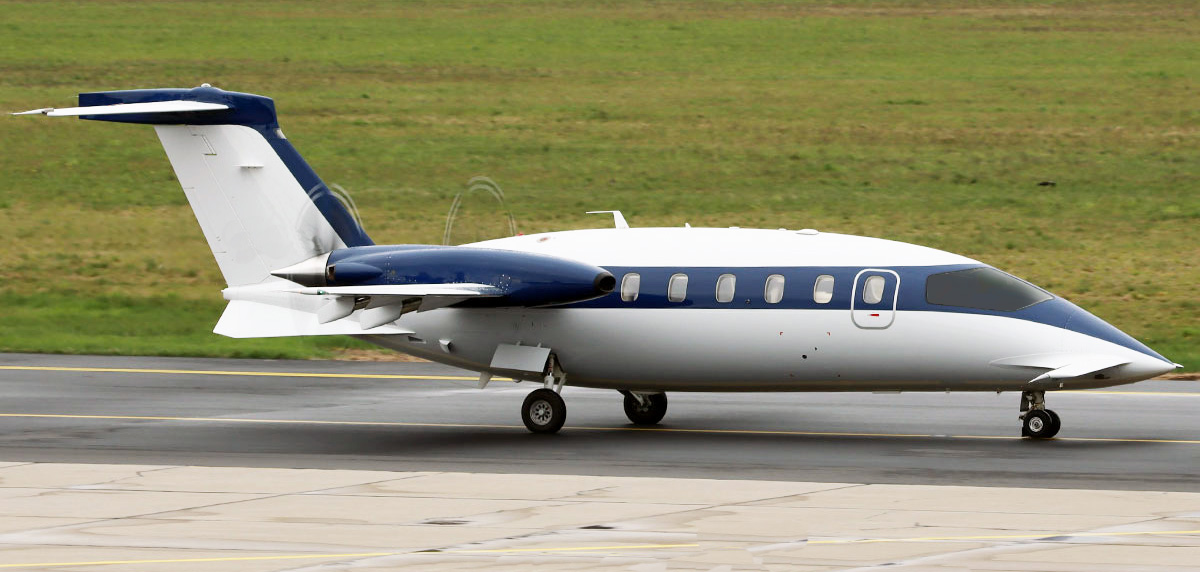

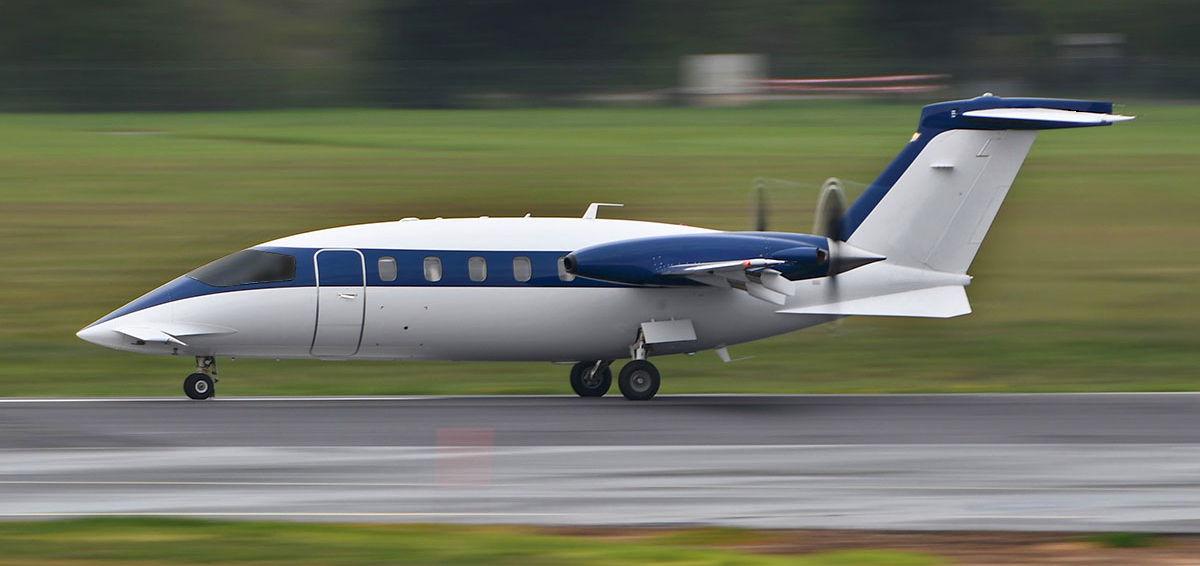

New Paint in 2021 – Overall Matterhorn White with Dark Blue accents
