Technical Specifications

• TOTAL TIME
• ENGINES 2 x Pratt & Whitney Canada PT6A-66B 3,420/ 3,420 FH 3600 FH TBO
• AVIONICS Collins ProLine 21 Avionics Package   Radio Management System – Collins RTU-4200, CDU-3000  Dual VHF COM - Collins…
• SEATS
• RANGE
• CABIN DOOR

Headline

MAKE OFFER !

Main Features

. 3,420 FH
. Pratt & Whitney PT6A-66B Engines
. Collins Pro Line 21 Avionics Suite
. IFIS 5000 Upgrade with Electronic Charts and Maps Overlay
. New Style Interiors
. RVSM

Engines

2 x Pratt & Whitney Canada PT6A-66B

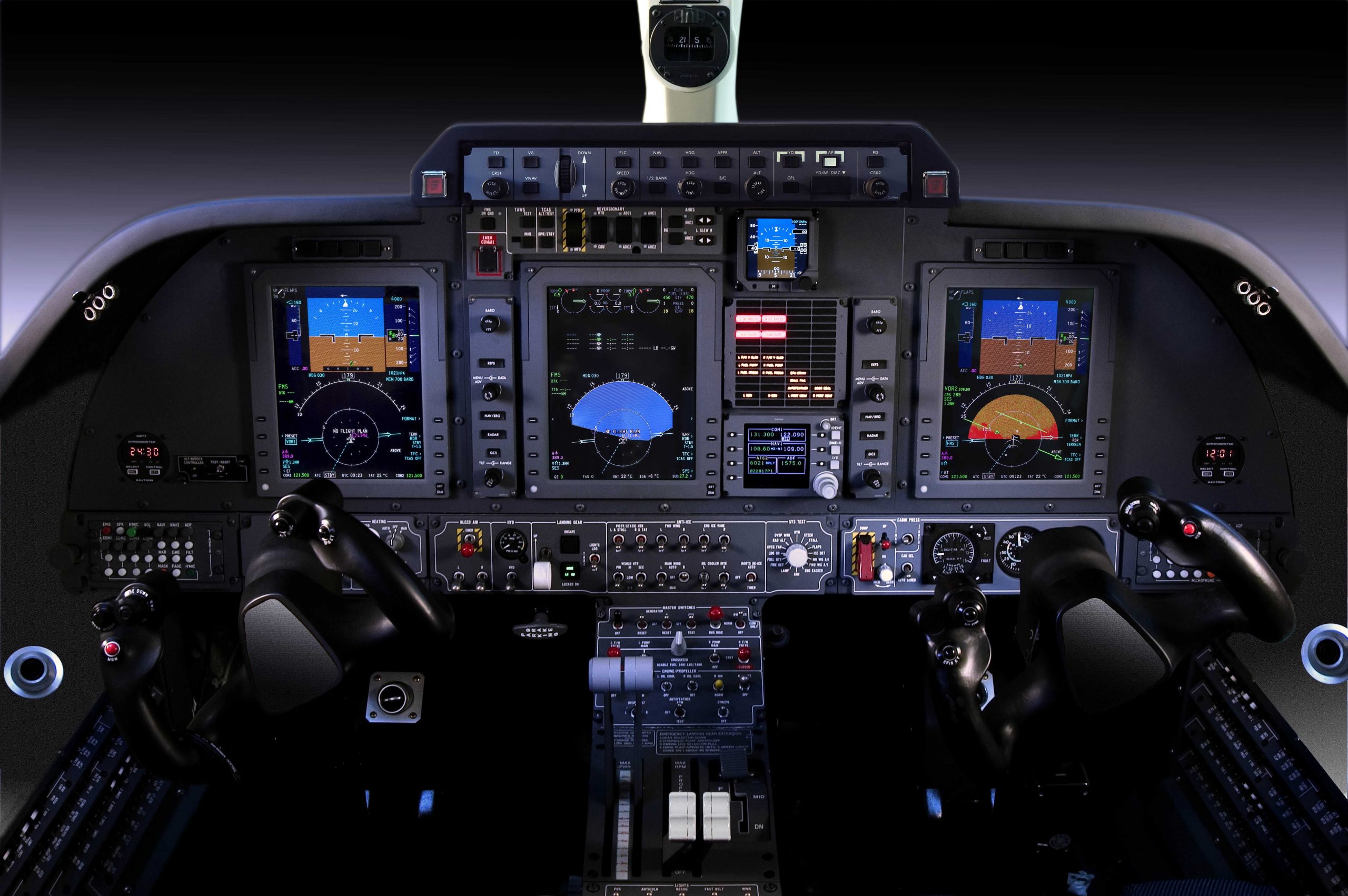

Avionics

Collins ProLine 21 Avionics Package

• Radio Management System – Collins RTU-4200, CDU-3000
• Dual VHF COM – Collins VHF-4000 Transceiver with Antenna with 8.33 kHz spacing
• VHF NAV 1 + ADF – Collins NAV-4000 VOR/ILS/MKR/ADF Receiver with Antennae
• VHF NAV 2 – Collins NAV-4500 VOR/ILS/MKR Receiver with Antennae
• Single DME – Collins DME-4000 (3 channel) with Antenna
• Dual Mode S Flight ID Diversity Transponder – Collins TDR-94D
• Radio Altimeter – Collins ALT-4000 (Operation to 2500 ft) with Antennae
• Turbulence Detection Weather Radar – Collins RTA-852 Colour Radar with 12″ Antenna
• TCAS I – L-3 Communications SkyWatch HP model SKY899
• TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
• Dual Audio Panel – Baker B1045
• Dual Cockpit Speaker
• Dual hand-held Microphone
• Dual Boom/Microphone/Headset
• EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
• Flight Guidance System – Collins Dual FGC-3003 (A/P,YD and dual Flight Director included), three SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
• Single FMS – Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000 (used also for radiotuning),
• DBU-4100
• GPS Sensor Unit – Collins GPS-4000
• Dual ADS – Collins ADC-3000
• Dual AHRS – Collins AHC-3000 and FDU-3000
• Maintenance Diagnostic System – Collins MDC-3110
• Four Data Concentrator Unit – Collins DCU-3001
• Stand-by Cluster Instrument – L-3 Communications GH-3100
• Emergency Locator Transmitter – Techtest Model 503 (3 frequency)
• Dual Clock (Flight Hour Meter included)
• Dual Master Annunciator
• Dual Turn&Slip Indicator (shown on the displays)
• Reversionary/Miscellaneous Panel

Additional Equipment

• Satellite Phone Air Cell ST3100
• Upgrade for Integrated Flight Information Collins IFIS 5000
• Electronic Charts Collins ECH 5000
• Maps Overlay Collins OVL 5000
• Engine Fire Extinguisher
• Max Take Off Weight Increase (12,100 lbs)
• Super VIP – Six Seats Cabin Arrangement
• Sheep Skin for Pilot & Copilot Seats

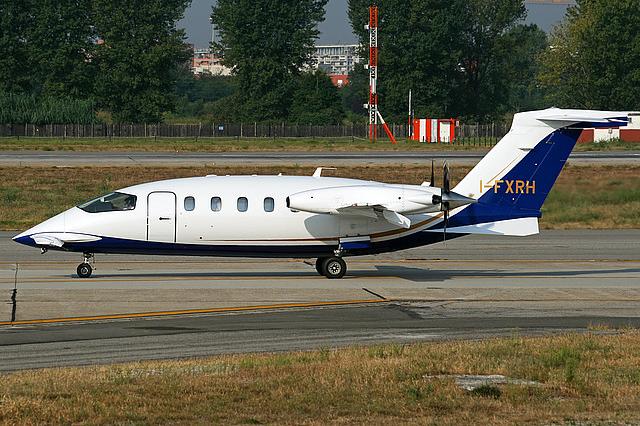

Exterior

Overall white with and blue/gold  accent stripes

Interior

• “Option 2” VIP floorplan (6-Place + 1).
• Four single passenger seats in club arrangement
• Two single passenger forward-facing seats.
• Aft fully enclosed lavatory with flushing potty and belted aft auxiliary passenger seat, sink with water and coat closet.
• Dual executive tables
• 2 Refreshment Pyramid Cabinets + 1 Refreshment Forward Cabinet with coffee thermos, liquor storage, ice chest and miscellaneous storage.
• Beige leather upholstering with highgloss Waterfall Bubinga Wood veneer finishing for cabinets and trimmings
