Technical Specifications

• TOTAL TIME
• ENGINES 2 x Pratt & Whitney  PT6A-66B LH   :    1,130  TT  SMOH  RH   :    1,130  TT  SMOH TBO :    3 600   FH Cowling Oil…
• AVIONICS Collins Pro-Line 21 Avionics Kit with  UPGRADE IFIS 5000   Radio Management System – Collins RTU-4200, CDU-3000 Dual…
• SEATS 7 + 1
• RANGE
• CABIN DOOR

Main Features

• 4,650 TTSNEW

• Fresh B-Check

• ADS-B Out

• WAAS / LPV

• Cockpit Voice Recorder

• 2 Portable Garmin MFD/EFB

• DBU-5000 Data Loader

• New Paint in 2016

• Interior Refurbished in 2016

• Satellite Phone Air Cell ST3100

• Max Take Off Weight (12,100 lbs )

• Polished Leading Edges

• Cowling Oil Door Installation

• Option 1 VIP Interiors (7+1 seats)

• FAA – Compliant

Engines

2 x Pratt & Whitney  PT6A-66B

LH   :    1,130  TT  SMOH

RH   :    1,130  TT  SMOH

TBO :    3 600   FH

Cowling Oil Door  Installation

Avionics

Collins Pro-Line 21 Avionics Kit with  UPGRADE IFIS 5000

• Radio Management System – Collins RTU-4200, CDU-3000
• Dual VHF COM – Collins VHF-4000 Transceiver with Antenna with 8.33 kHz spacing
• VHF NAV 1 + ADF – Collins NAV-4000 VOR/ILS/MKR/ADF Receiver with Antennae
• VHF NAV 2 – Collins NAV-4500 VOR/ILS/MKR Receiver with Antennae
• Single DME – Collins DME-4000 (3 channel) with Antenna
• Dual Mode S Flight ID Diversity Transponder – Collins TDR-94D
• Radio Altimeter – Collins ALT-4000 (Operation to 2500 ft) with Antennae
• Turbulence Detection Weather Radar – Collins RTA-852 Colour Radar with 12″ Antenna
• TCAS II – Collins TCAS-4000 system
• TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
• Dual Audio Panel – Baker B1045
• Dual Cockpit Speaker
• Dual hand-held Microphone
• Dual Boom/Microphone/Headset
• EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
• Flight Guidance System – Collins Dual FGC-3003 (A/P,YD and dual Flight Director included),three  SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
• Single FMS – Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000 (used also for radio tuning),
• DBU-4100
• GPS Sensor Unit – Collins GPS-4000A
• Dual ADS – Collins ADC-3000
• Dual AHRS – Collins AHC-3000 and FDU-3000
• Maintenance Diagnostic System – Collins MDC-3110
• Four Data Concentrator Unit – Collins DCU-3001
• Stand-by Cluster Instrument – L-3 Communications GH-3100
• Emergency Locator Transmitter – Techtest Model 503 (3 frequency)
• Dual Clock (Flight Hour Meter included)
• Dual Master Annunciator
• Dual Turn&Slip Indicator (shown on the displays)
• Reversionary/Miscellaneous Panel
• RVSM Compliant
• ADS-B Out
• WAAS / LPV

Additional Equipment

• Satellite Phone Air Cell ST3100
• Upgrade for Integrated Flight Information Collins IFIS 5000

• Electronic Charts Collins ECH 5000
• Maps Overlay Collins OVL 5000
• ADS-B Out

• WAAS / LPV

• Cockpit Voice Recorder

• 2 Portable Garmin MFD/EFB

• DBU-5000 Data Loader

• Polished Leading Edges
• Cowling Oil Door  Installation

Exterior

Overall white with Metal Blue and Grey Accents

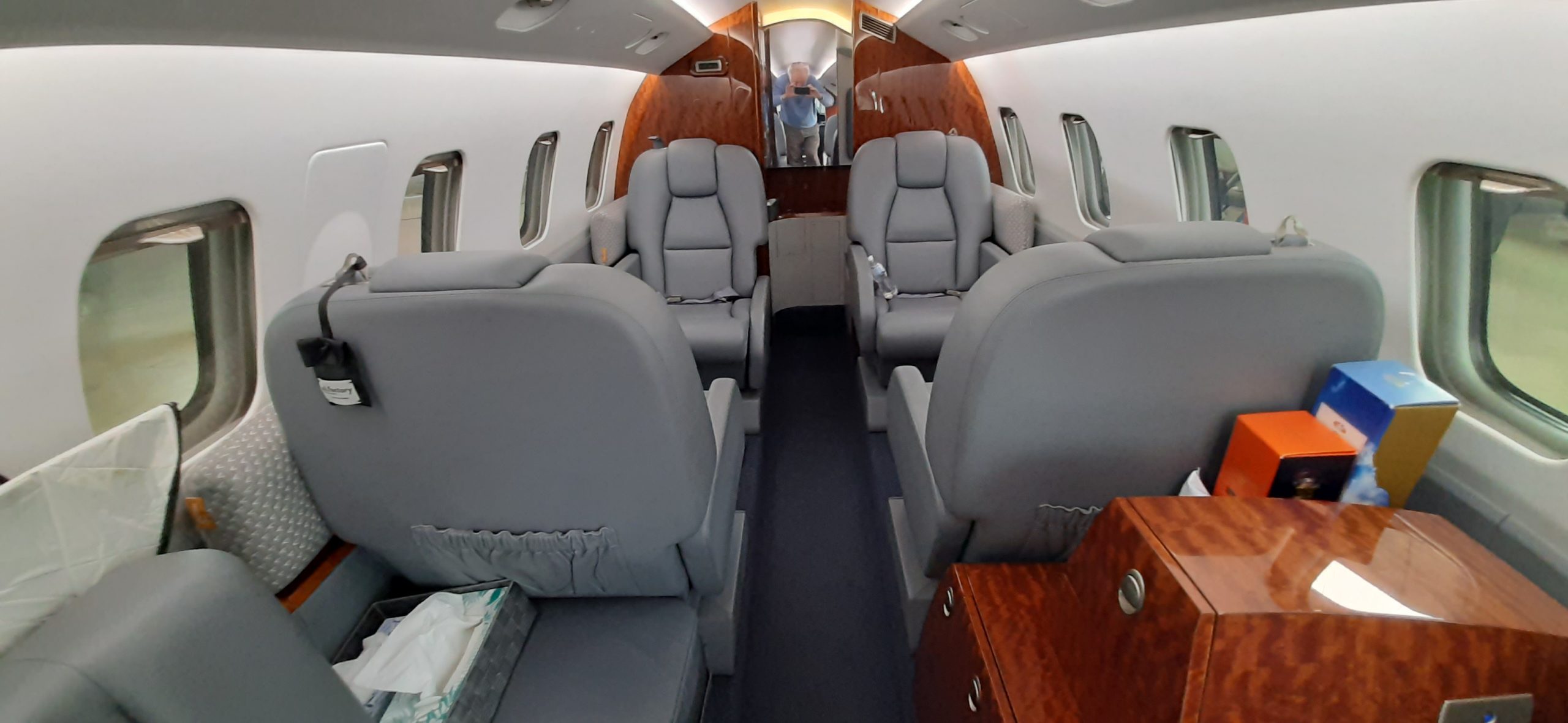

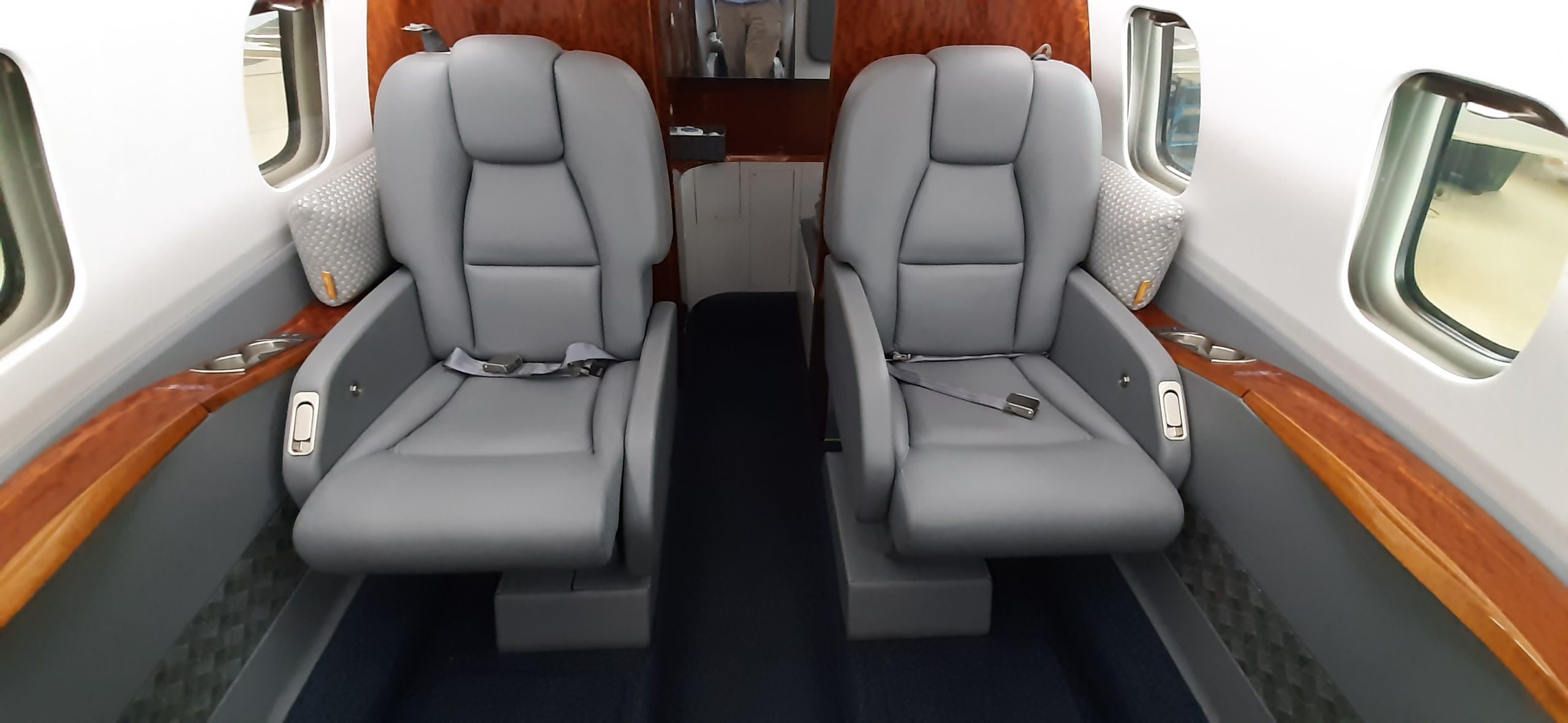

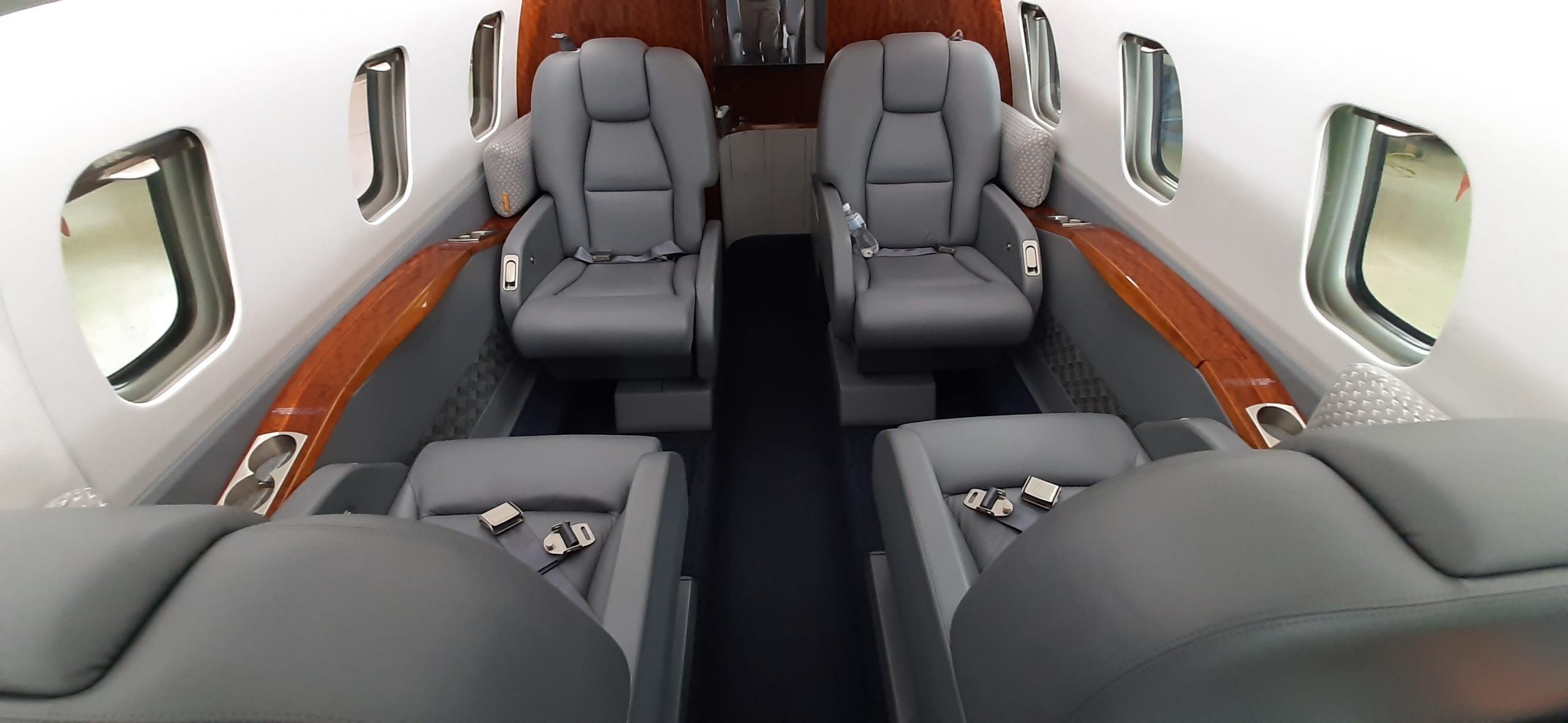

Interior

• 7 + 1 “Option 1 – Armonia ” Interior

• 4 single VIP passenger seats in club arrangement

• LH side-facing passenger seats

• Two-place divan

• Dual executive tables

• Refreshment Cabinet with beverage container, ice chest and miscellaneous storage

• Aft fully enclosed lavatory with flushing potty and belted aft auxiliary passenger seat.

• Vanity module and illuminated storage closet

• Gray leather upholstering

• High Gloss Veneer insert finishing
