Technical Specifications

Headlines

• 2,460 FH –
• Pratt & Whitney PT6A-66B Engines –
• Collins Pro Line 21 Avionics Suite –
• IFIS 5000 Upgrade –
• Electronic Charts –
• Maps Overlay –
• TCAS II –
• ADAS –
• New Style Interiors –
• Fresh of B-Check –
• One Owner Since New –
• No Damage History –
• Always maintained by Piaggio –

Main Features

• 2,460 FH
• Fresh of B-Check
• Collins Pro Line 21 Avionics Suite
• IFIS 5000 Upgrade
• Electronic Charts.
• Maps Overlay
• TCAS II
• ADAS
• Max Take Off Weight Increase (12,100 lb)
• New Style Interiors
• RVSM, Mach 0.7, Cat II Landings, Steep Approach

Engines

Pratt & Whitney Canada PT6A-66B

– 2,460 / 2,460 TTSN

– 3,600 FH  TBO

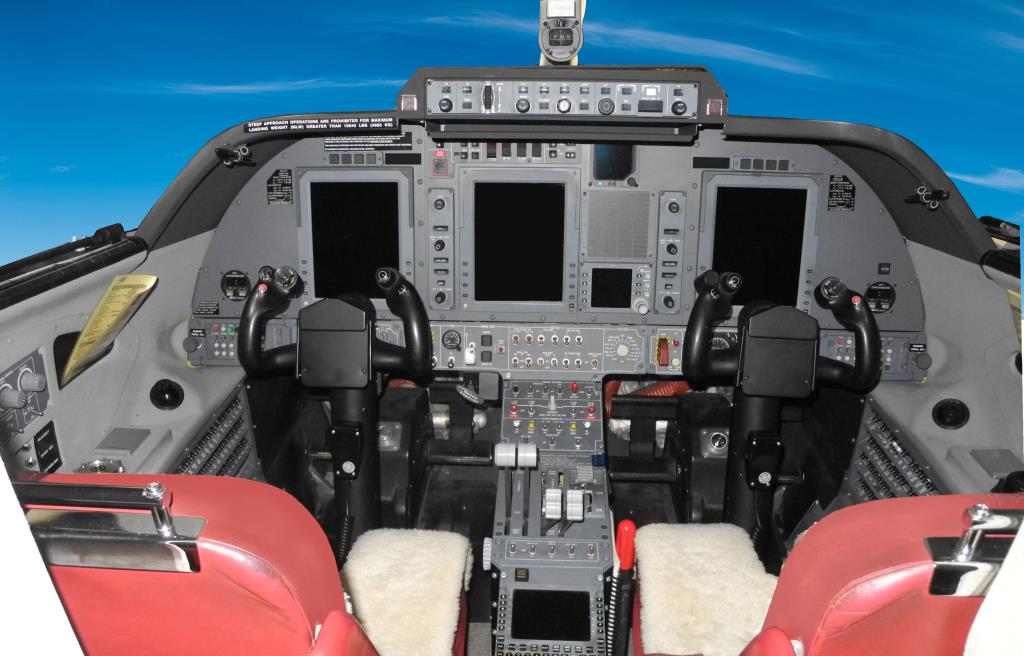

Avionics

Collins Pro-Line 21 Avionics Kit with  UPGRADE IFIS 5000

• Radio Management System – Collins RTU-4200, CDU-3000
• Dual VHF COM – Collins VHF-4000 Transceiver with Antenna with 8.33 kHz spacing
• VHF NAV 1 + ADF – Collins NAV-4000 VOR/ILS/MKR/ADF Receiver with Antennae
• VHF NAV 2 – Collins NAV-4500 VOR/ILS/MKR Receiver with Antennae
• Single DME – Collins DME-4000 (3 channel) with Antenna
• Dual Mode S Flight ID Diversity Transponder – Collins TDR-94D
• Radio Altimeter – Collins ALT-4000 (Operation to 2500 ft) with Antennae
• Turbulence Detection Weather Radar – Collins RTA-852 Colour Radar with 12″ Antenna
• TCAS II – Collins TCAS-4000 system
• TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
• Dual Audio Panel – Baker B1045
• Dual Cockpit Speaker
• Dual hand-held Microphone
• Dual Boom/Microphone/Headset
• EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
• Flight Guidance System – Collins Dual FGC-3003 (A/P,YD and dual Flight Director included),three  SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
• Single FMS – Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000 (used also for radio tuning),
• DBU-4100
• GPS Sensor Unit – Collins GPS-4000A
• Dual ADS – Collins ADC-3000
• Dual AHRS – Collins AHC-3000 and FDU-3000
• Maintenance Diagnostic System – Collins MDC-3110
• Four Data Concentrator Unit – Collins DCU-3001
• Stand-by Cluster Instrument – L-3 Communications GH-3100
• Emergency Locator Transmitter – Techtest Model 503 (3 frequency)
• Dual Clock (Flight Hour Meter included)
• Dual Master Annunciator
• Dual Turn&Slip Indicator (shown on the displays)
• Reversionary/Miscellaneous Panel
• RVSM Compliant

Additional Equipment

• Satellite Phone Air Cell ST3100
• Upgrade for Integrated Flight Information Collins IFIS 5000

• Electronic Charts Collins ECH 5000
• Maps Overlay Collins OVL 5000
• TCAS II – Collins TCAS 4000
• ADAS
• Engine Fire Extinguisher

• Max Take Off Weight Increase (12,100 lbs)
• JAR OPS 1 Kit
• Super VIP – Six Seats Cabin Arrangement
• Sheep Skin for Pilot & Copilot Seats

Exterior

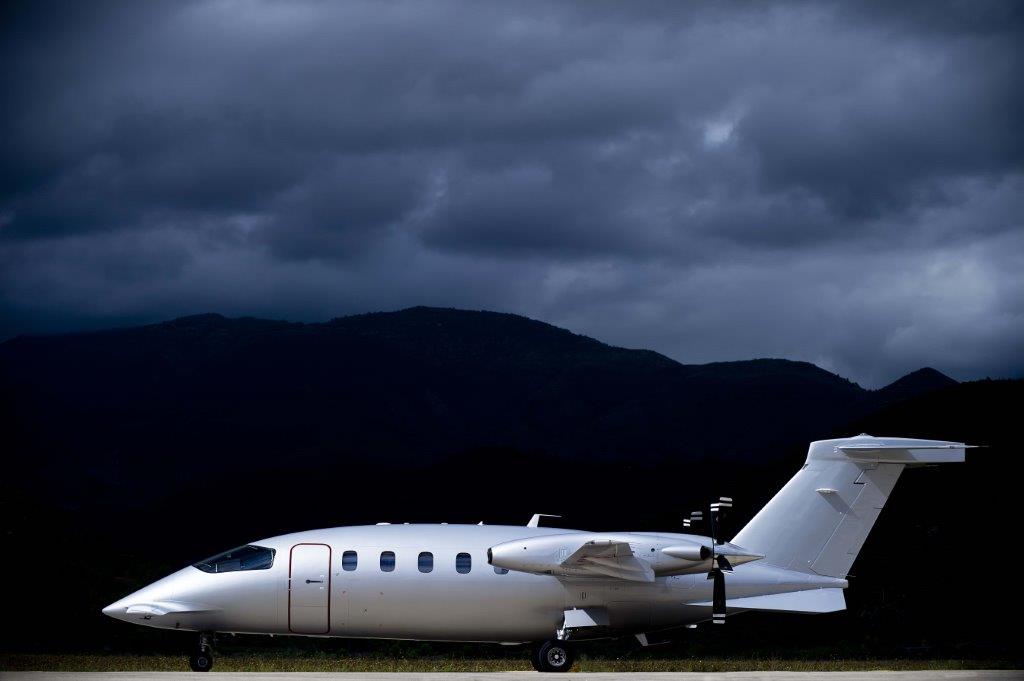

Overall Micalized Metal Grey

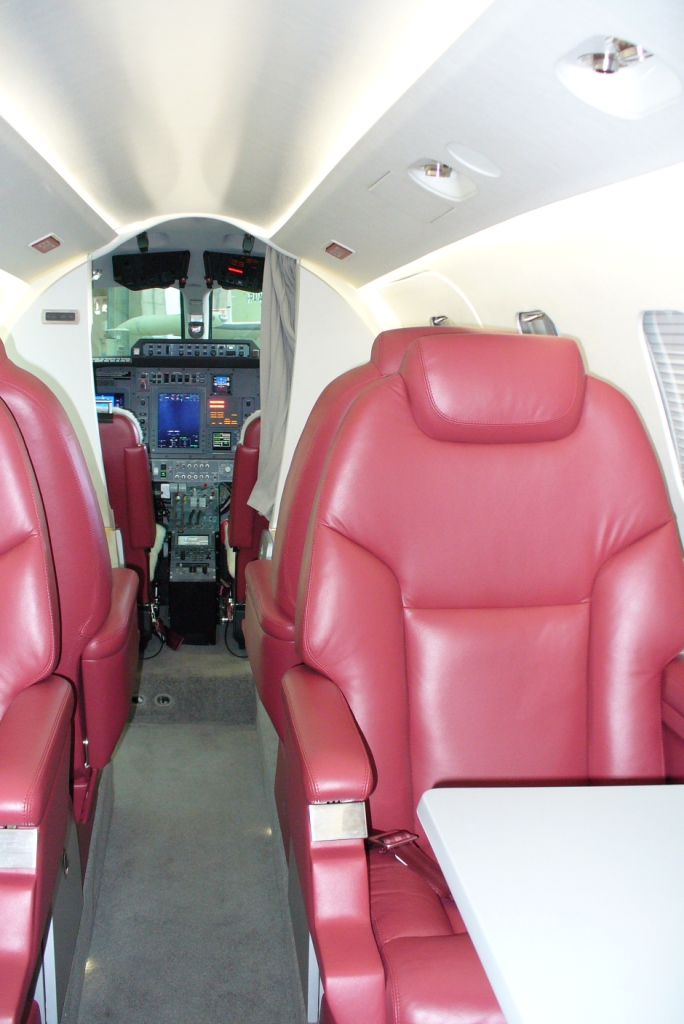

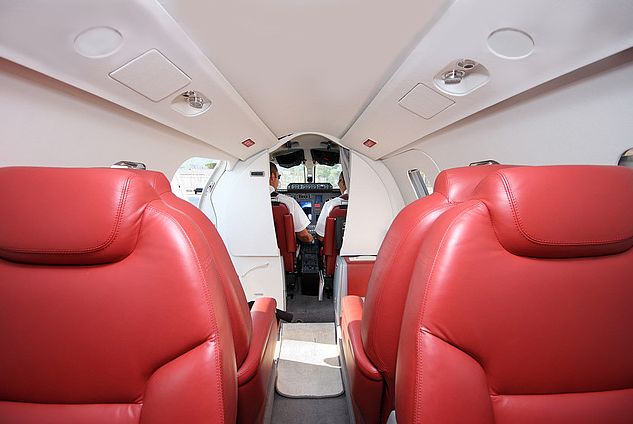

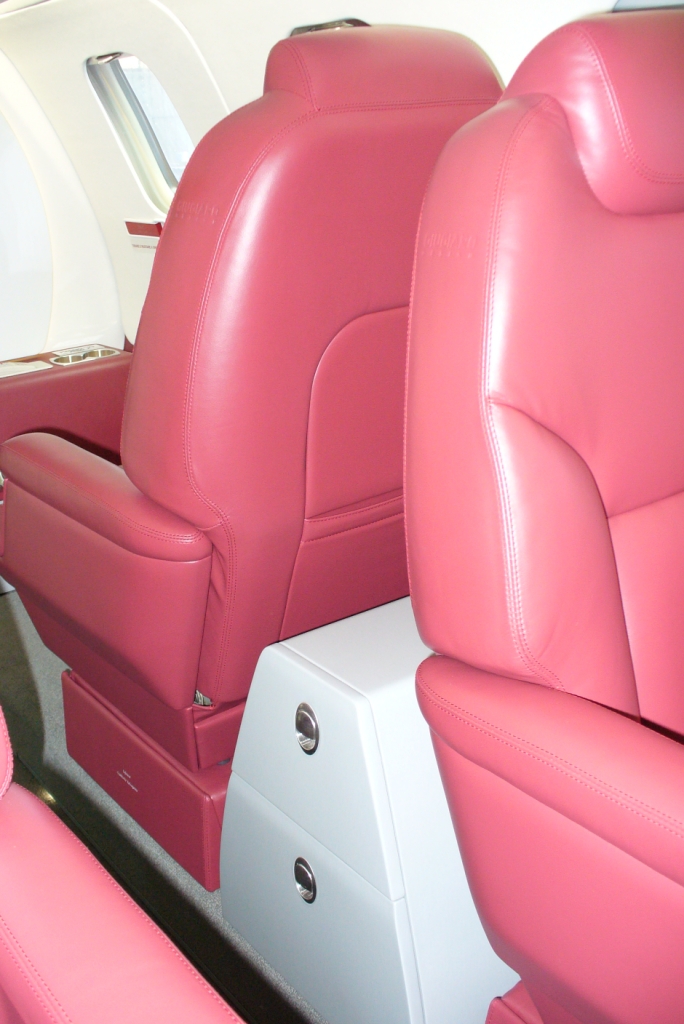

Interior

• 6-place “Option 2” floorplan

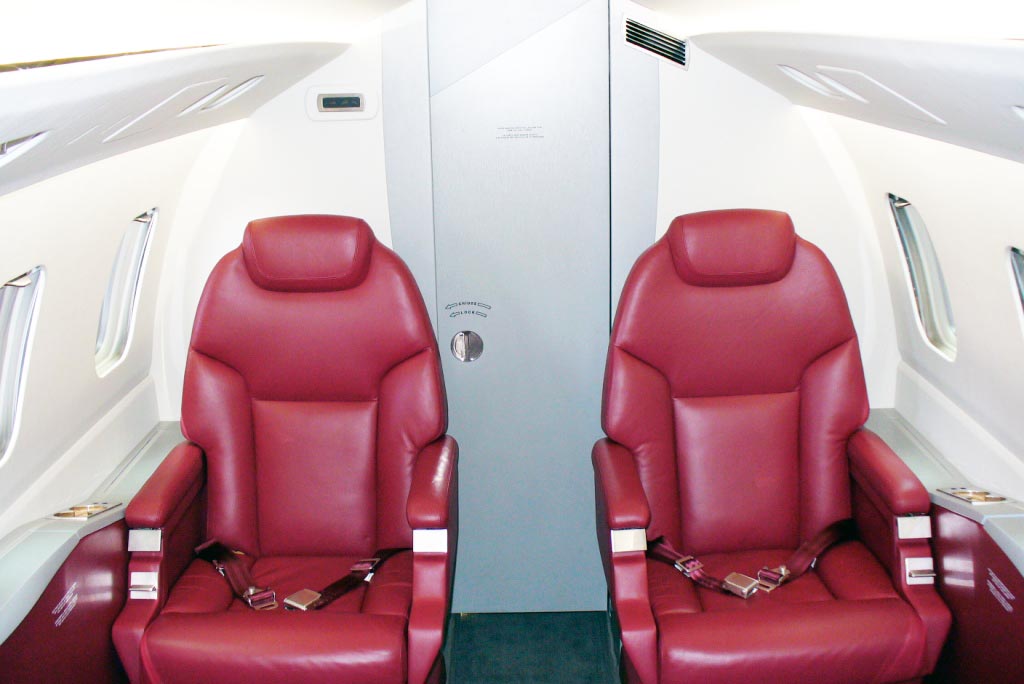

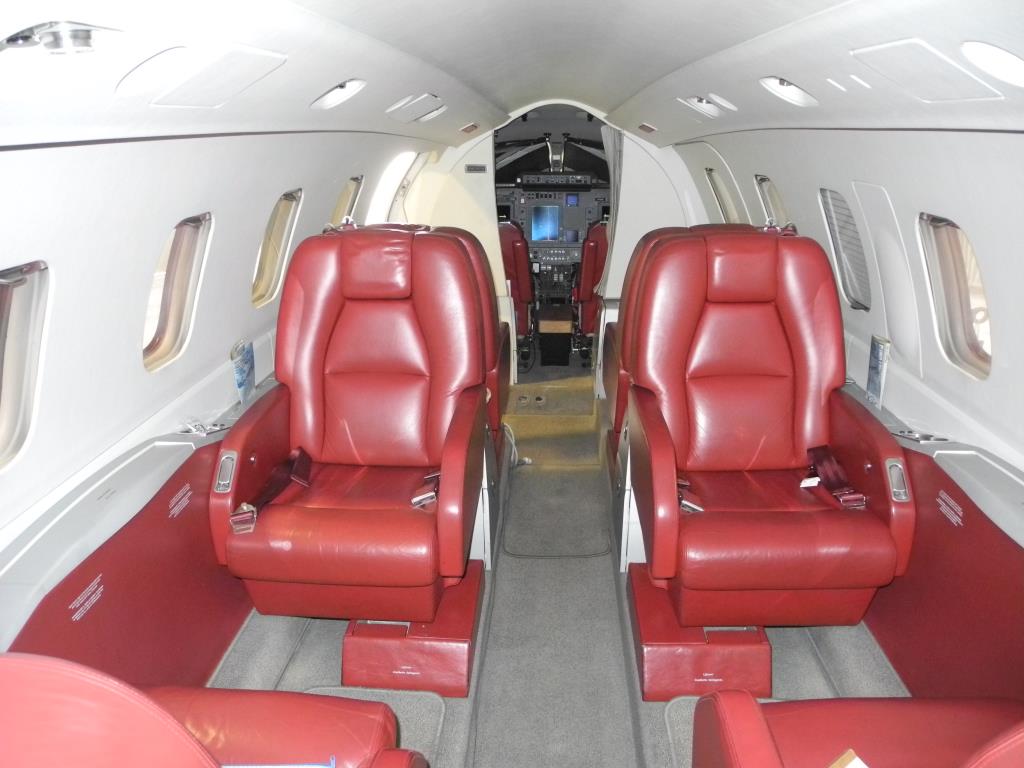

• Four single passenger seats in club arrangement, two FWD facing VIP seats
• Aft fully enclosed lavatory with flushing potty and belted aft auxiliary passenger seat
• Coat closet
• Dual executive tables
• Forward refreshment center with coffee thermos, liquor storage, ice chest and miscellaneous storage.
• Trim & Color :   Red Leather with Grey Metal lining
