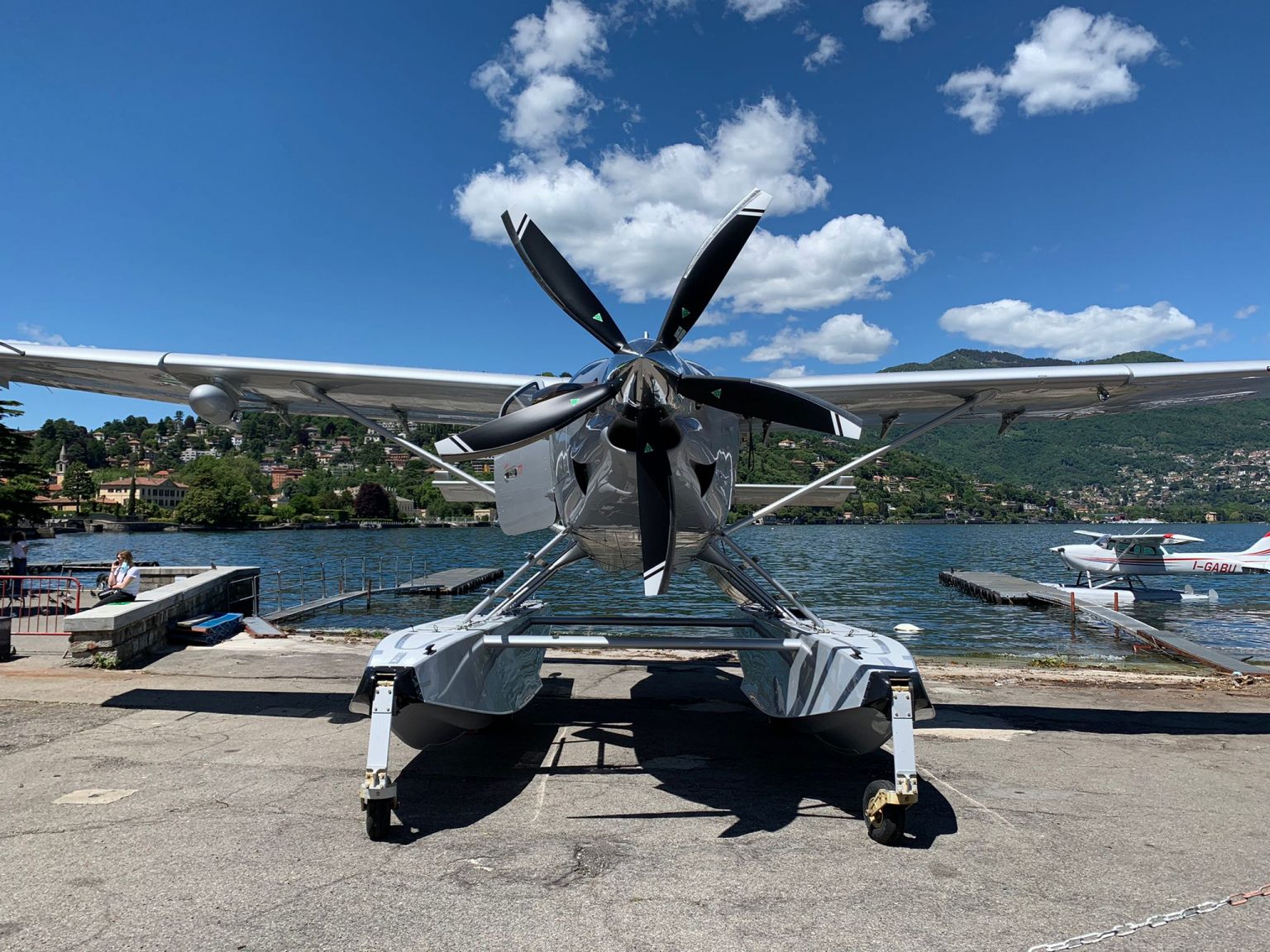

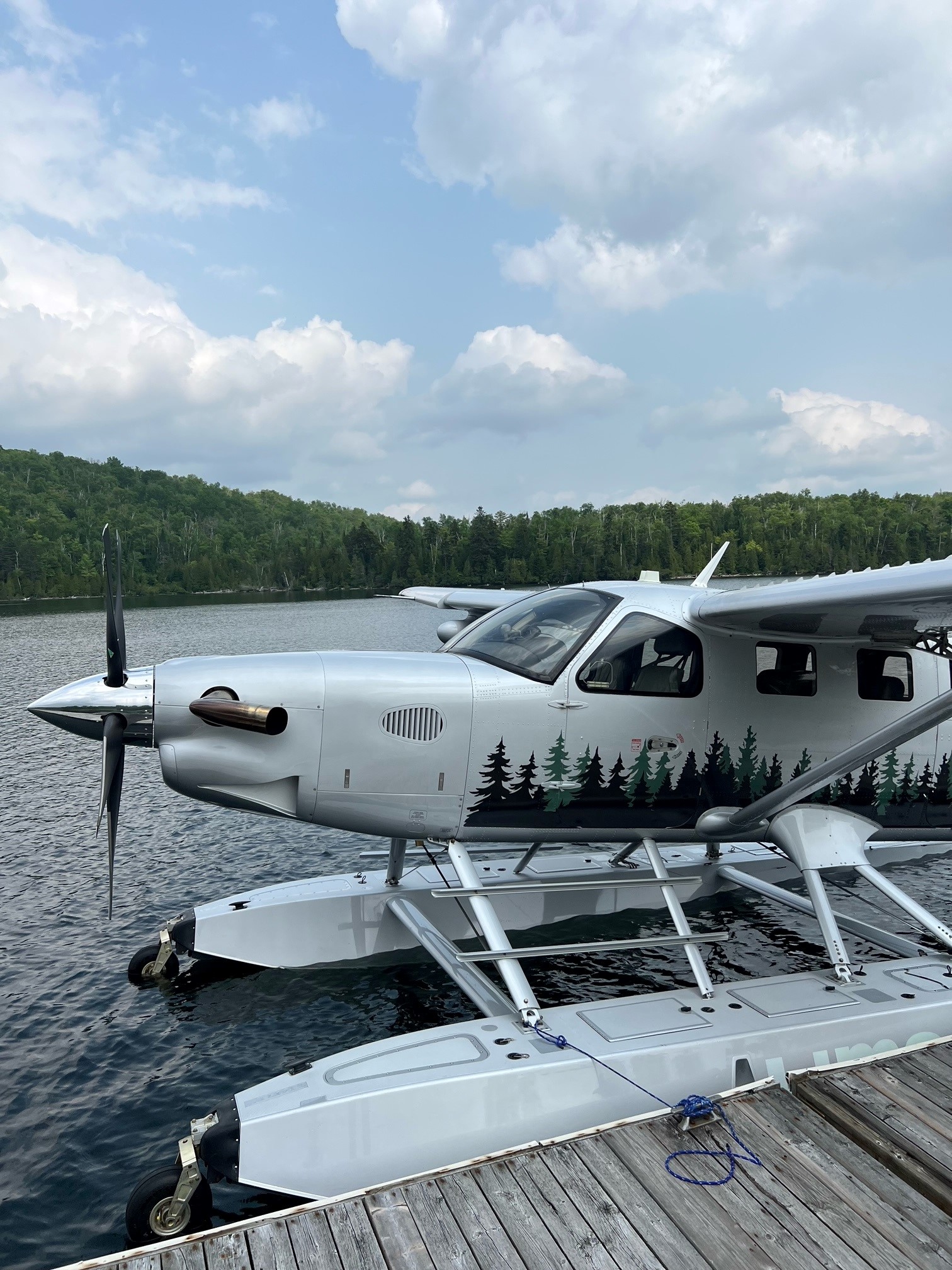

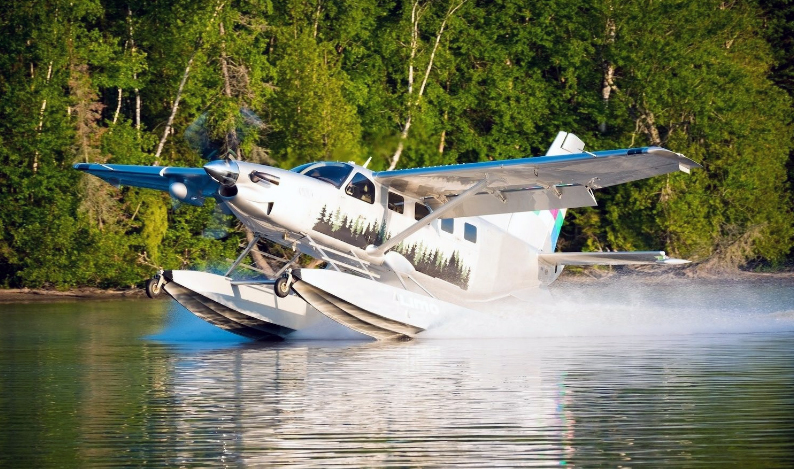

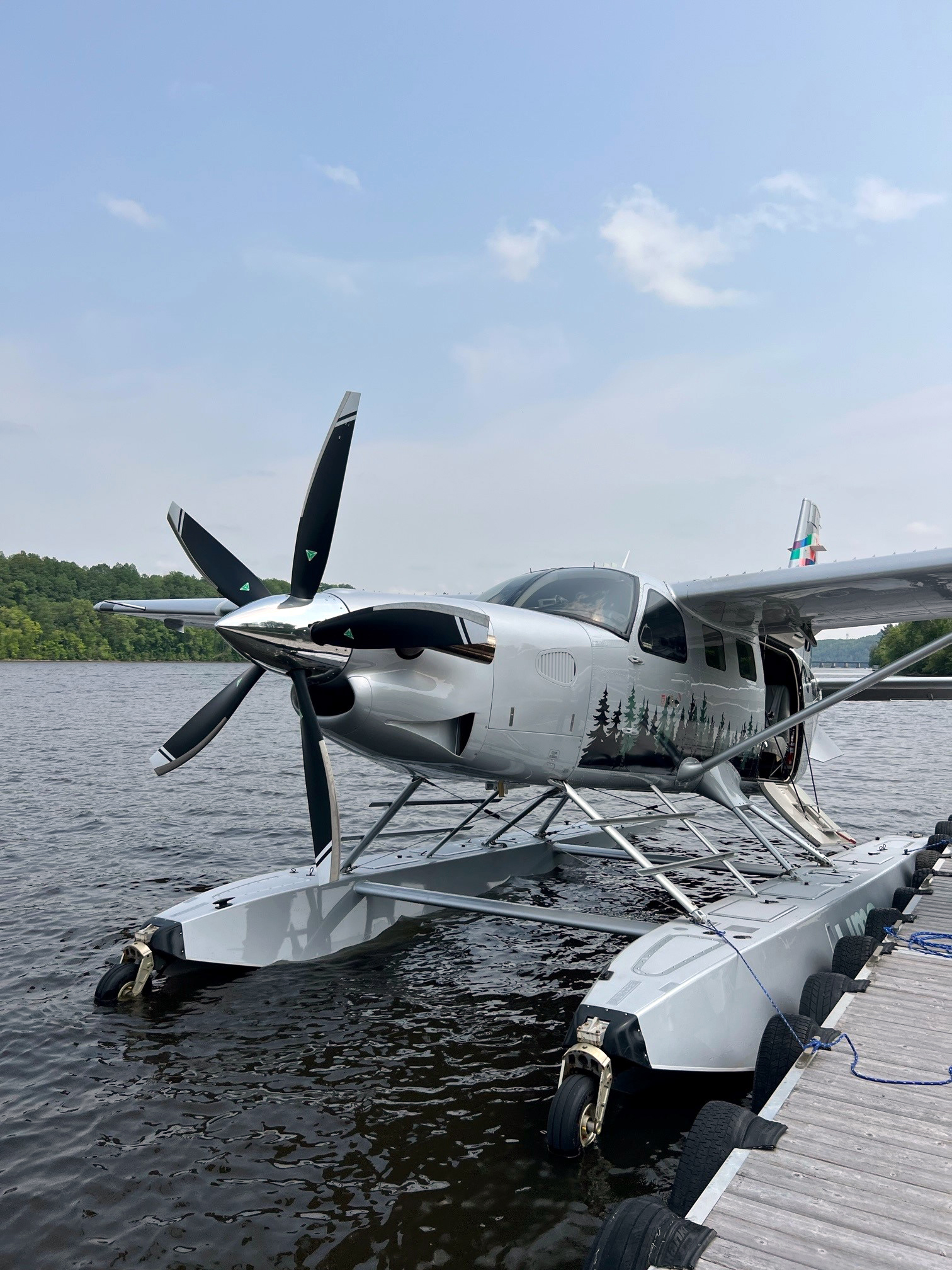

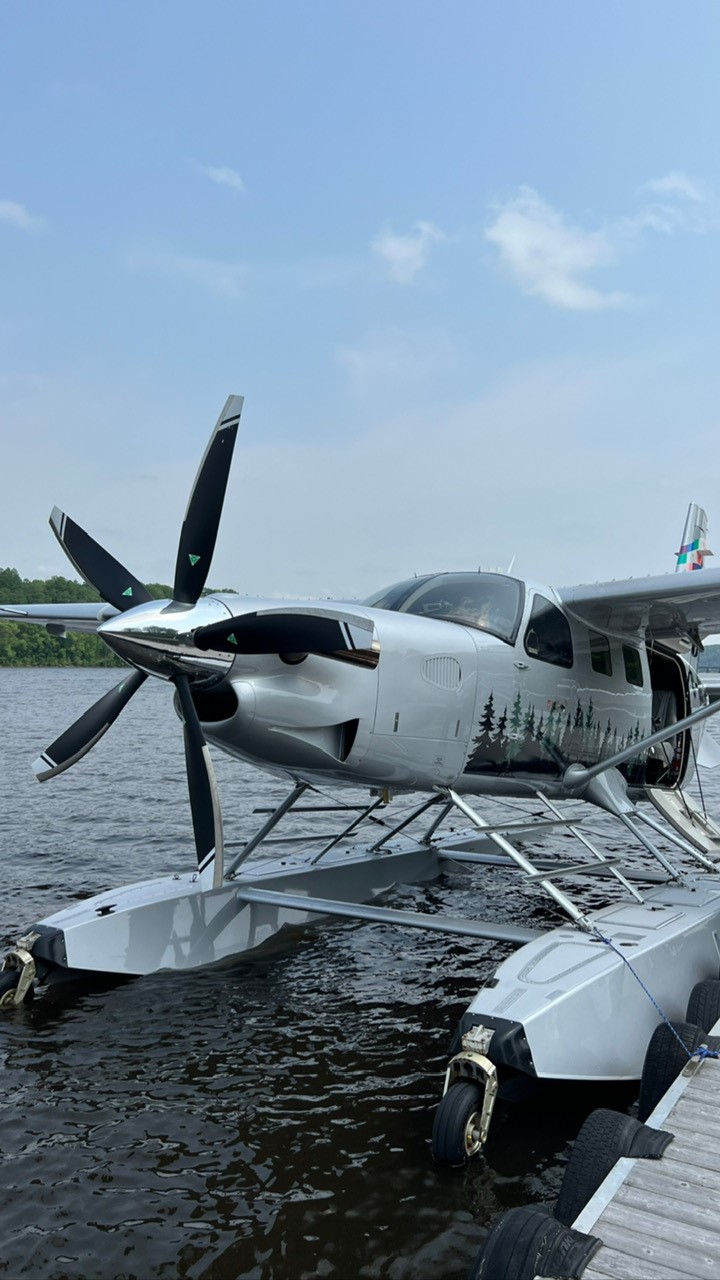

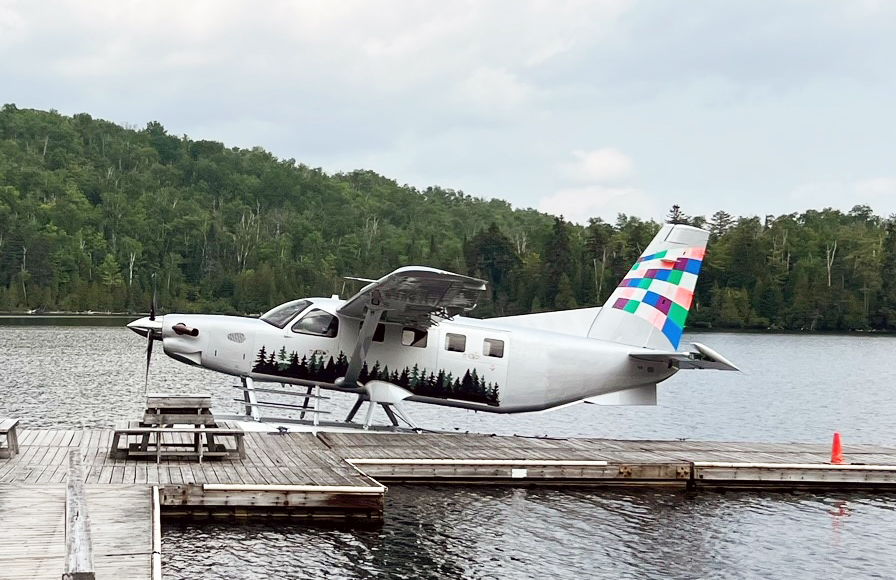

2014- QUEST KODIAK 100 SEA

2014- QUEST KODIAK 100 SEA

2014- QUEST KODIAK 100 SEA

Sold
Category:

– 2014 YOM
– 760  FH  Total Time Since New
– Aerocet 6650 Amphibious Floats
– Air Conditioning
– S-TEC 55X Autopilot
– Garmin Synthetic Vision
– 8 + 2  Seats Cabin A

Technical Specifications

  • TOTAL TIME
  • ENGINES
  • AVIONICS – Garmin G1000® Integrated Flight Deck – 2 x 10.4” PFDs, 1x 10.4” MFD – Dual GIA 63 GPS/NAV/COM – Dual GMA 1347 Audio…
  • SEATS 8 + 2
  • RANGE
  • CABIN DOOR

Headlines

– 2014 YOM

– 760  FH  Total Time Since New

– Aerocet 6650 Amphibious Floats

– Air Conditioning

– S-TEC 55X Autopilot

– Garmin Synthetic Vision

– 8 + 2  Seats Cabin Arrangement

– New Paint in 2020

– No Damage History

Main Features

– 2014 YOM

– 760  FH  Total Time Since New

– Aerocet 6650 Amphibious Floats

– Air Conditioning

– S-TEC 55X Autopilot

– Garmin Synthetic Vision

– 8 + 2  Seats Cabin Arrangement

– New Paint in 2020

– No Damage History

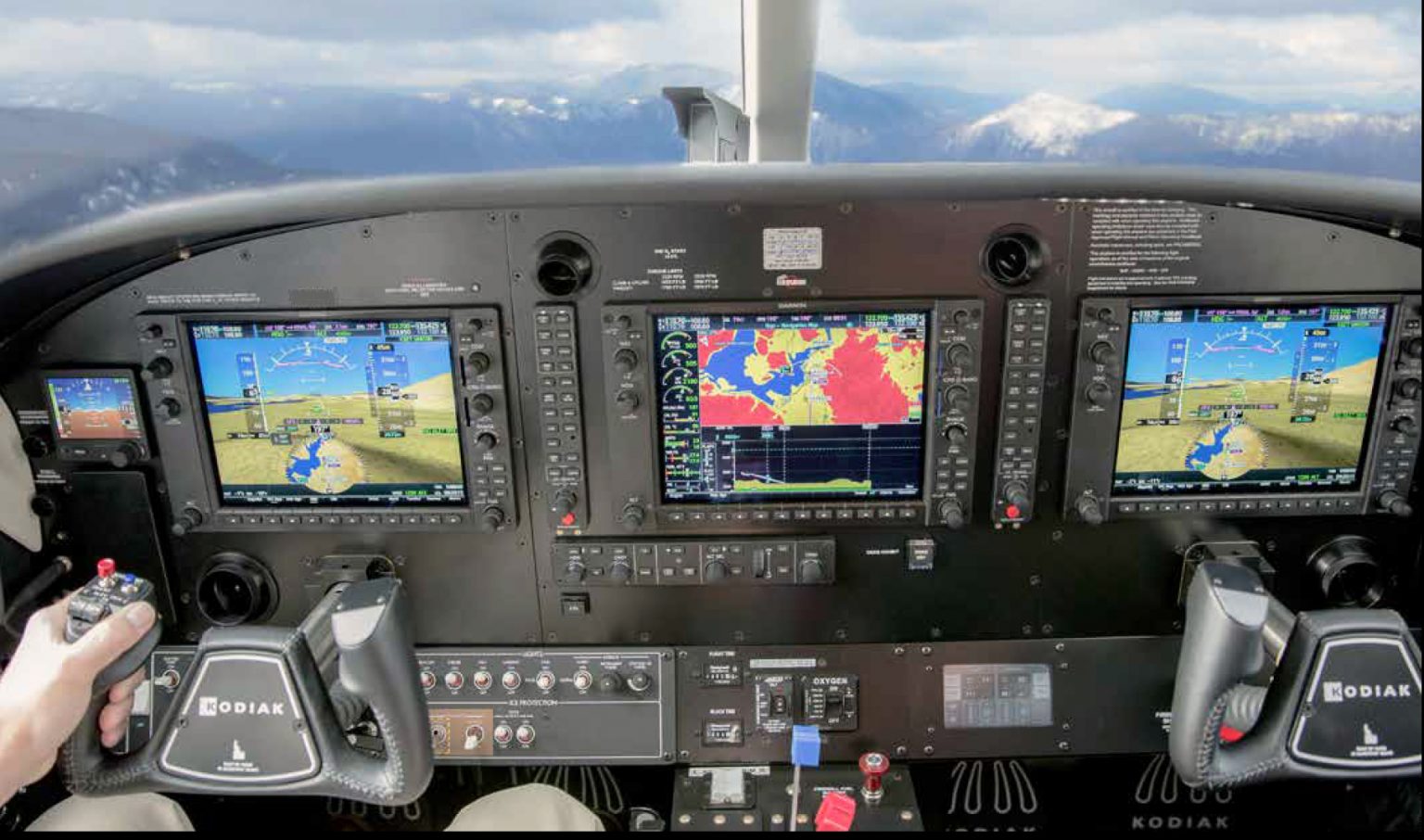

Avionics

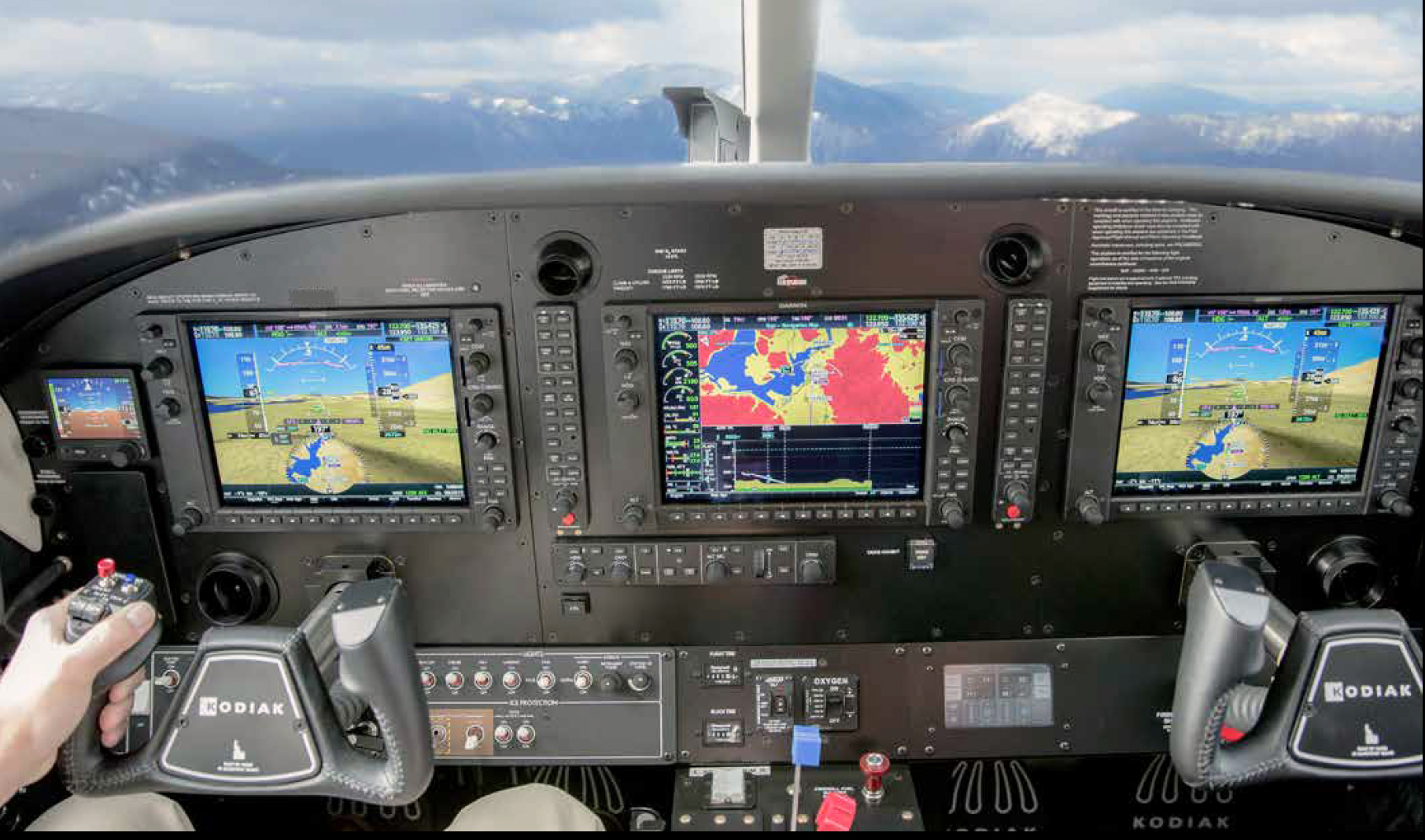

– Garmin G1000® Integrated Flight Deck

– 2 x 10.4” PFDs, 1x 10.4” MFD

– Dual GIA 63 GPS/NAV/COM

– Dual GMA 1347 Audio Panel

– GTX 33 Mode S Transponder

– S-TEC 55X Autopilot

– Garmin Synthetic Vision

– Garmin TAWS-B

– Standby Instruments

– Artificial Horizon, Airspeed, Altimeter

– Garmin GWX 68 WX Radar

– Garmin GTS 800 Traffic Advisory System

Powerplant

ENGINE :     Pratt & Whitney  PT6A-34

– 760 FH TTSNEW

– Take-Off Power :  750 SHP

– TBO:  4,000 FH

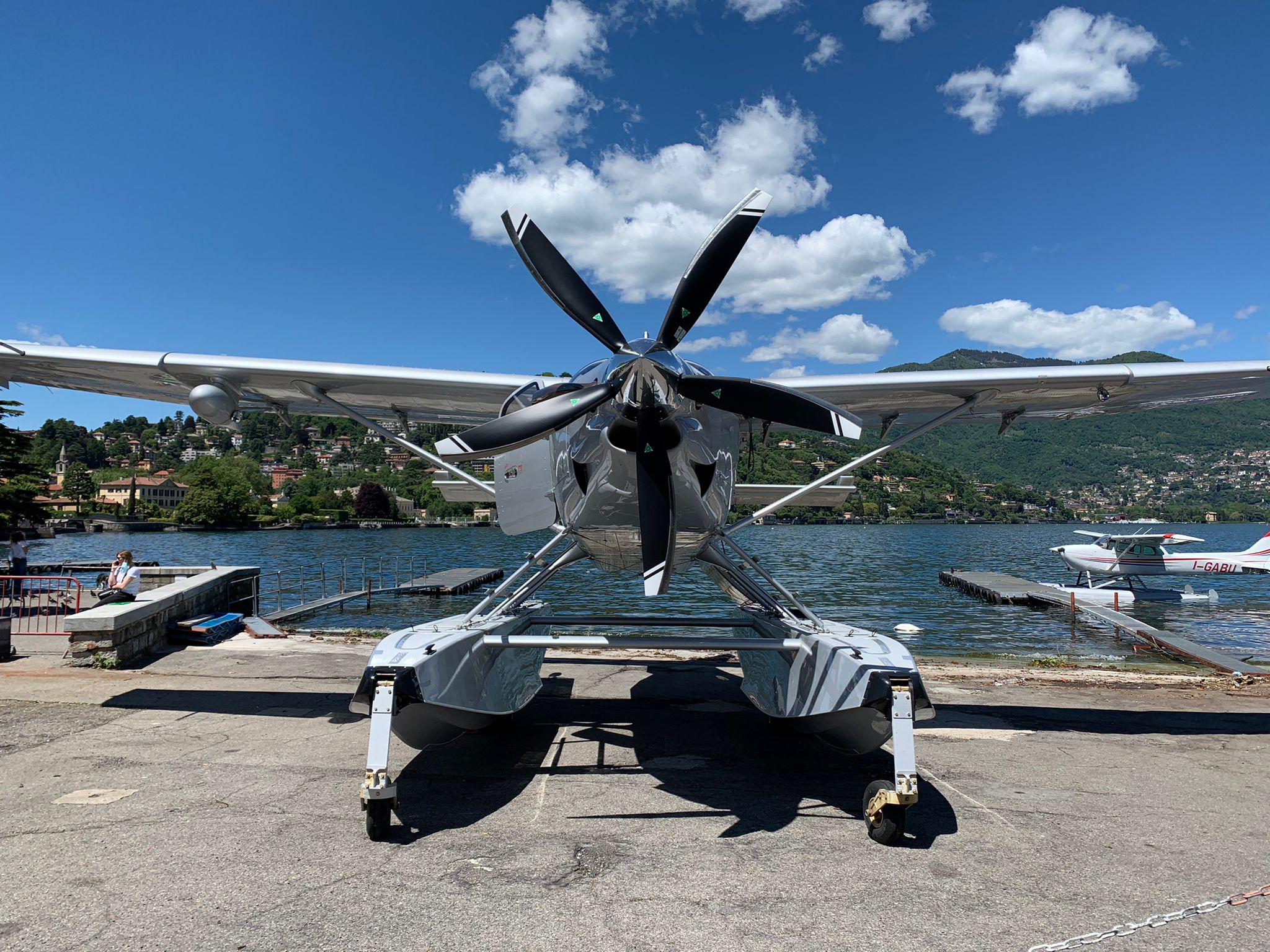

PROPELLER :   MTV-27 Propeller

96”, 5-Blade Pitch Latch Propeller, constant speed, feathering, reversible

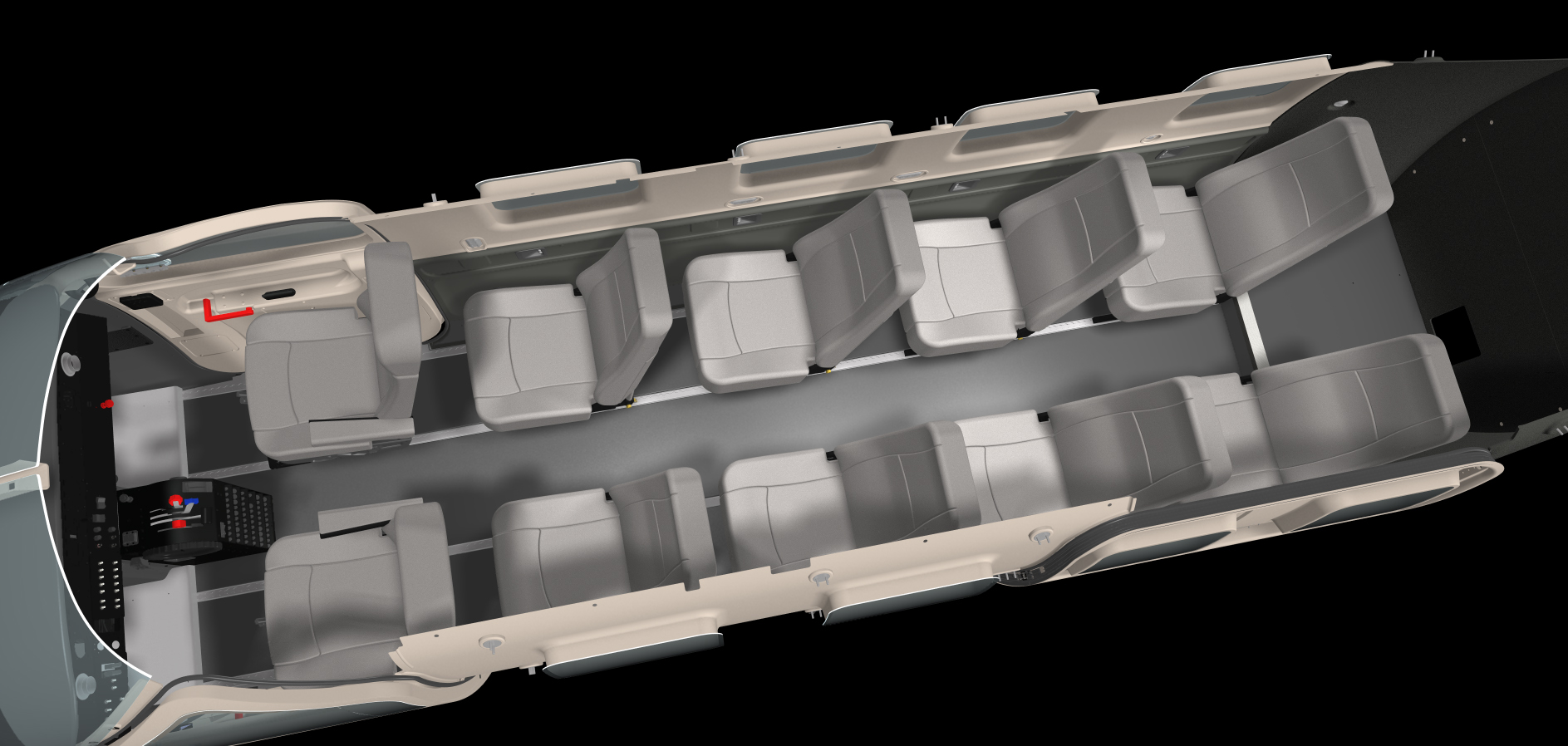

Interior

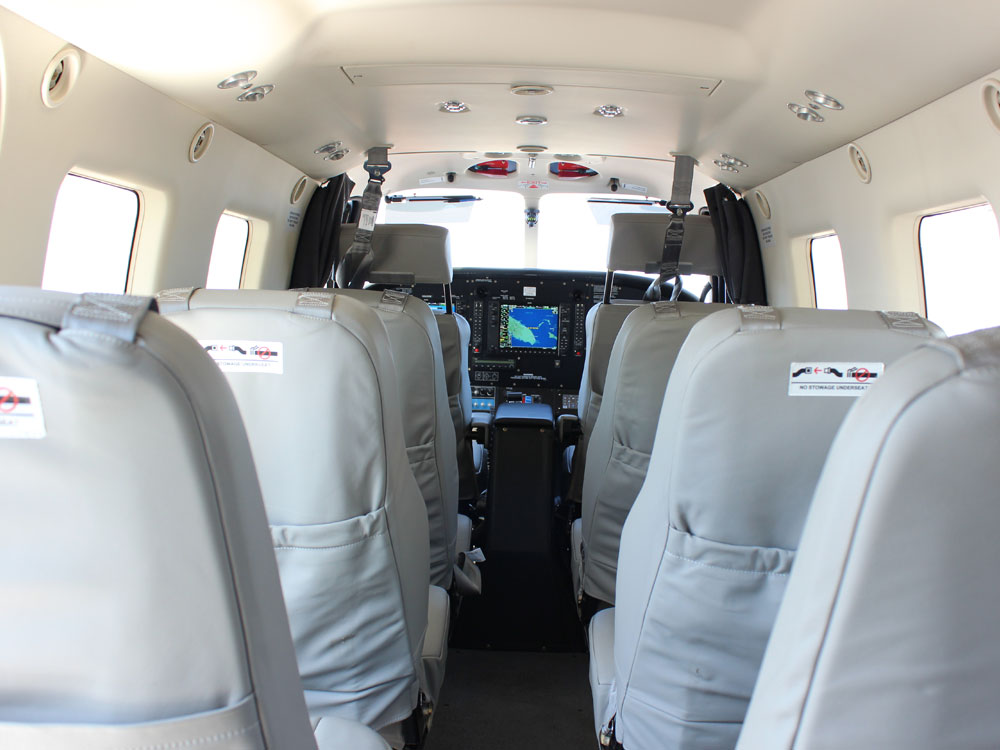

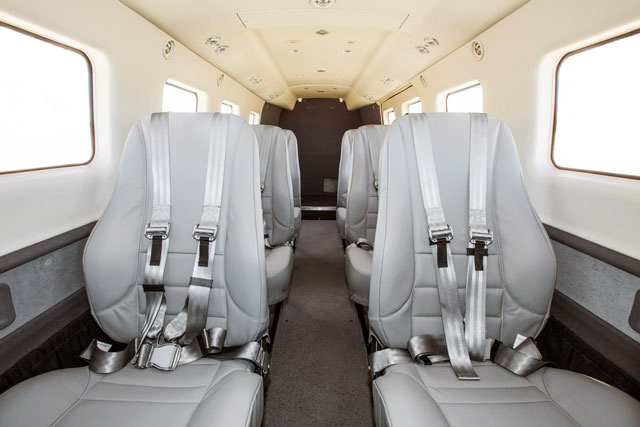

  • 8 + 2  Seats Cabin Arrangement
  • Upgraded Interior Package, Grey
  • Air Conditioning System

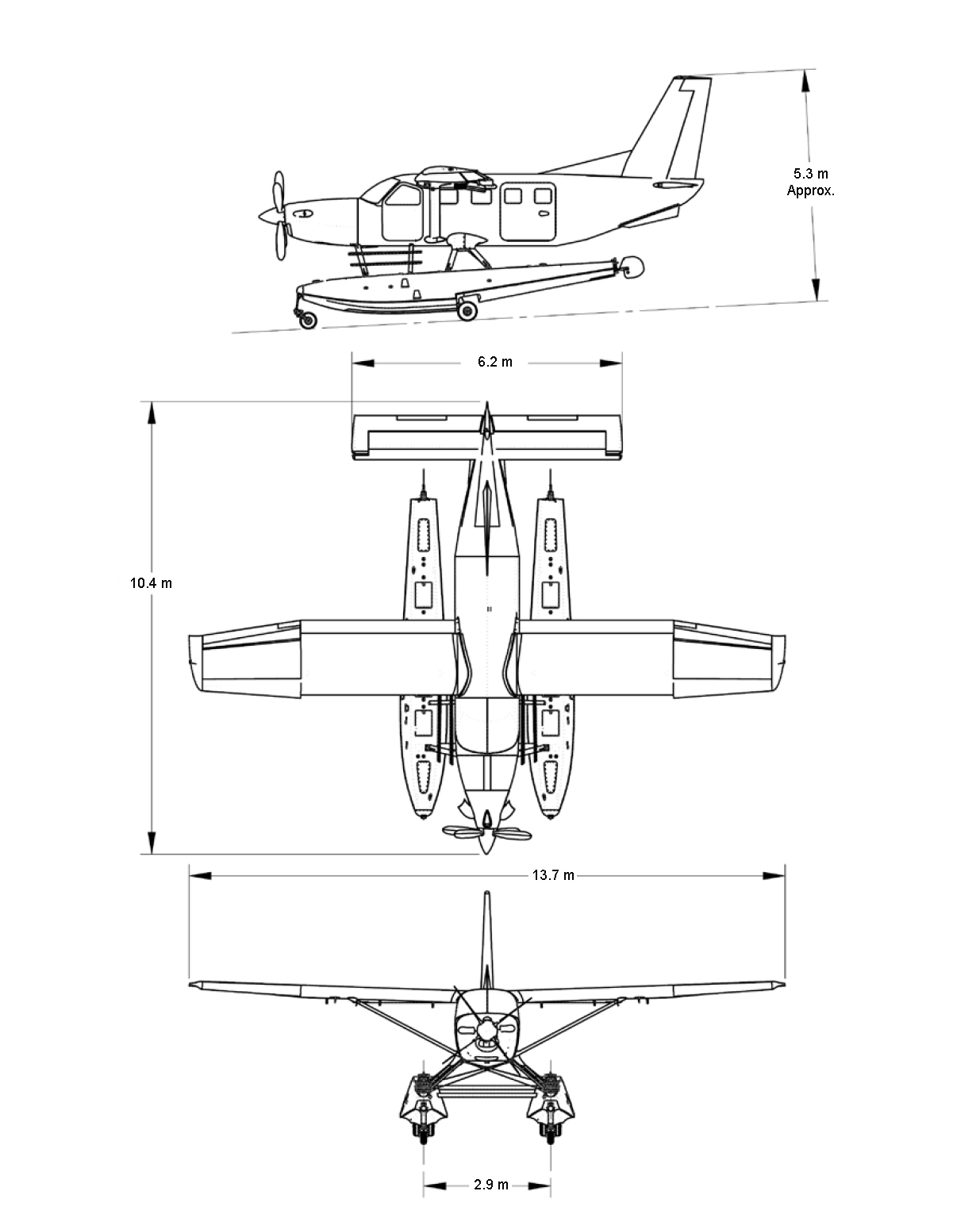

Specification

SPECIFICATIONS

QUEST KODIAK 100 – SEA



Engine

750 shp

760 PS

Engine TBO Hours

4000

4000

Wingspan

45 ft

13,7 m

Overall Length

34 ft

10,4 m

Cabin Length

190”

4,82 m

Cabin Height

57”

1,45 m

Cabin Width

54”

1,37 m

Propeller Blade Diameter

5 Blade / 96”

2,4 m

Max Ramp Weight

7305 lbs

3313,5 kg

Power Loading

9.67 lb/shp

4,4 kg/PS

Float Make / Model

Aerocet 6650

Performance

PERFORMANCE



Max Cruise at 10,000 ft

162 kts

300 km/h

Take-off Distance (Land)

975 ft

297 m

Take-off Run Land (50ft Obstacle)

1,507 ft

459 m

Landing Distance (Land)

1,291 ft

393 m

Take-off Distance (Water)

1,735 ft

529 m

Take-off Run Water (50ft Obstacle)

2,332 ft

711 m

Landing Distance (Water)

1,314 ft

400 m

Rate of Climb

1,060 ft/min

5,38 m/s

Service Ceiling

20,000 ft

6096 m

Gross Weight

7,255 lbs

3290 kg

Landing Weight

7,200 lbs

3266 kg

Useful Load

2,755 lbs

1250 kg

Range

1000 nm

1852 km
