Technical Specifications

Headlines

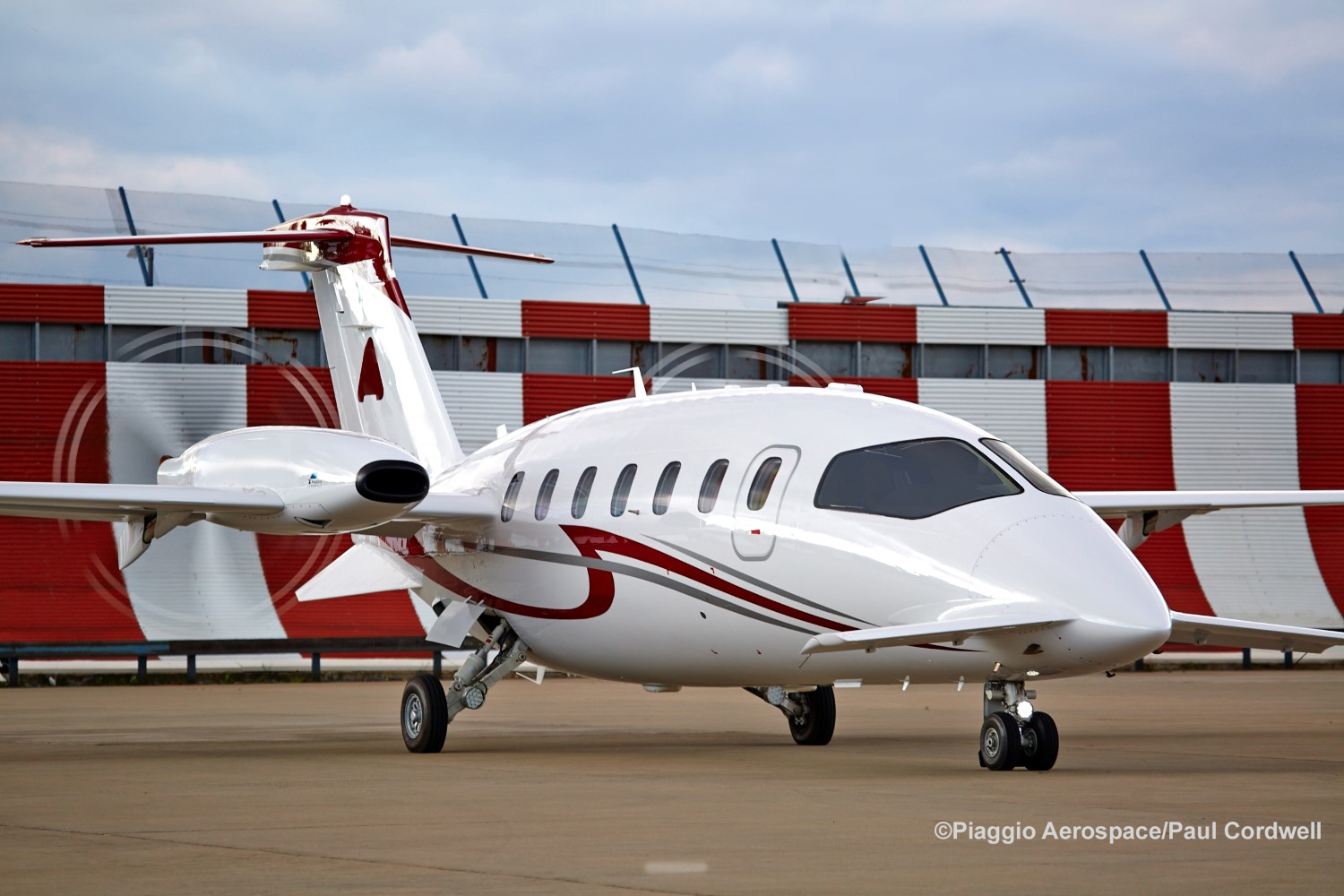

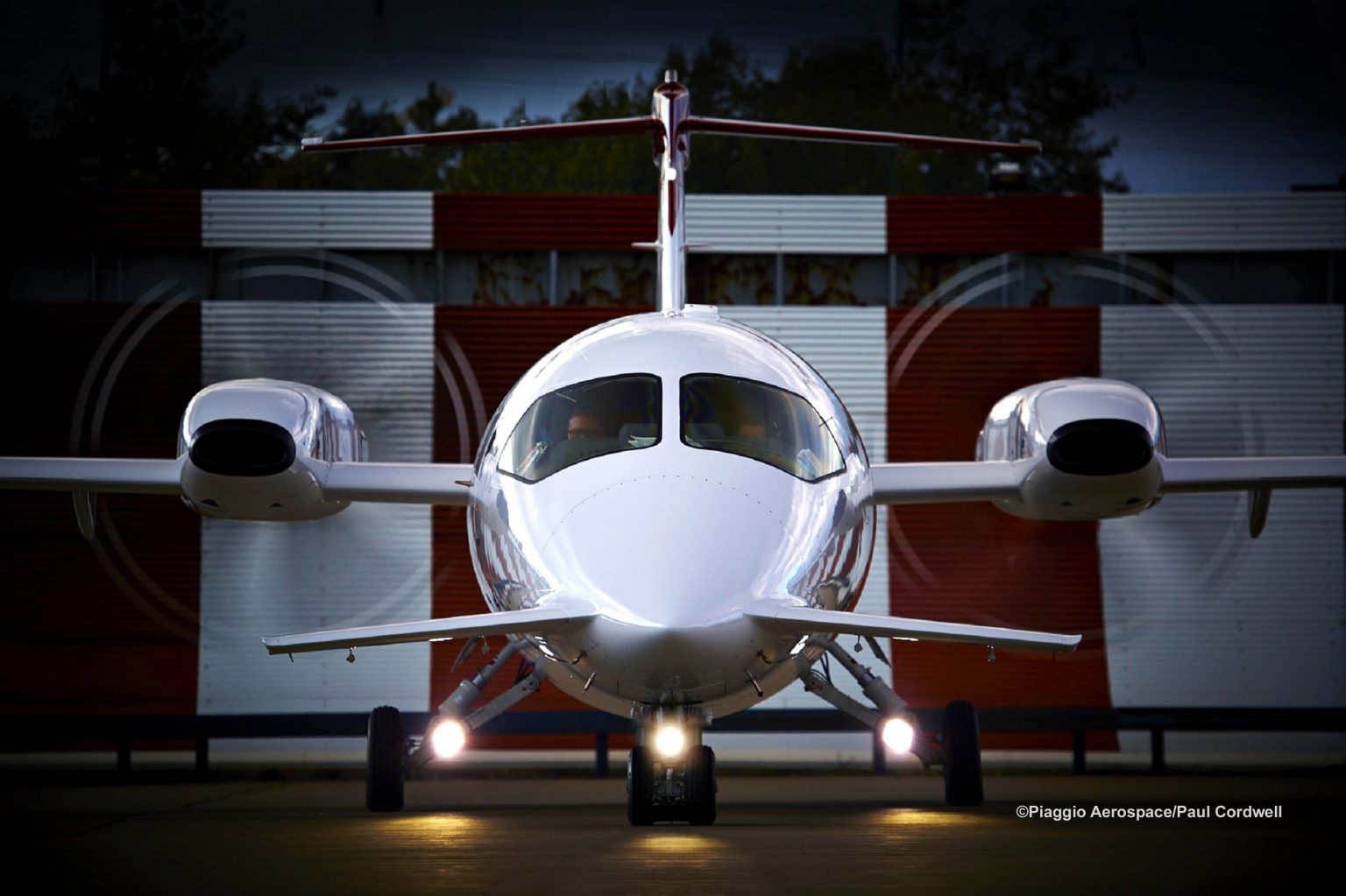

2016  Piaggio Avanti EVO

– One Owner –  ONLY 95 FH TT;

– First delivery October 2016;

– Full Warranties;

– Anti-Skid System;

– New LED Taxi and Landing Lights;

– Integrated Flight Information – Collins IFIS 5000;

– Electronic Charts  & Maps Overlay;

– ACAS II 7.1;

– SBAS / LPV capability;

– Provisions for ADS-B Out, HF, CVR, CPDLC;

– Option 1 (7+1) Cabin Layout;

Main Features

• First delivery – October 2016
• One owner since new
• Full warranties  (Airframe + Engines + Avionics)
• Upgrade for Integrated Flight Information – Collins IFIS 5000
• Electronic Charts Collins ECH 5000
• Maps Overlay Collins OVL 5000
• ACAS II 7.1 – Collins TCAS 4000
• SBAS / LPV capability
• Provisions for ADS-B Out, CPDLC, HF, CVR
• Anti-skid braking system

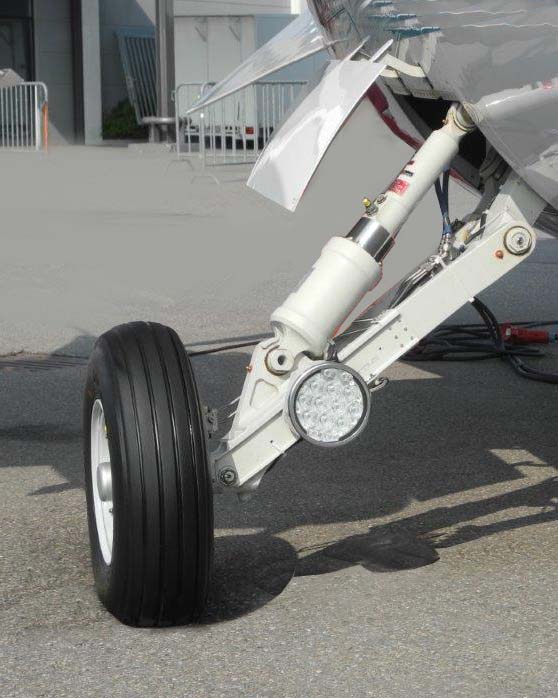

• New LED Taxi & LNDG Lights

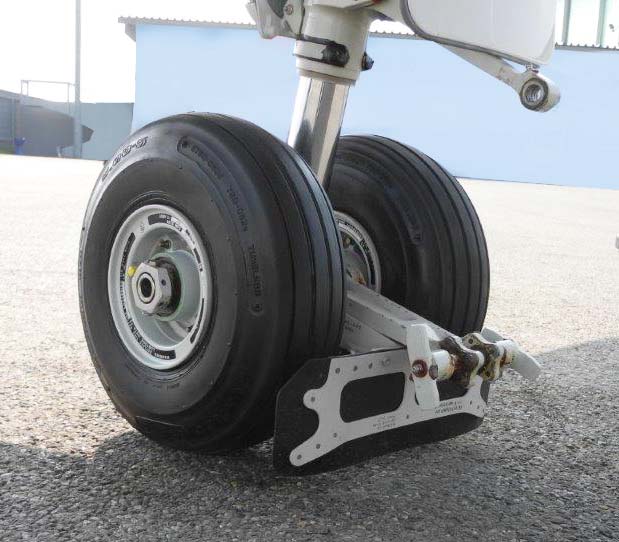

• Gravel Kit
• VIP – 7 Seats Cabin Arrangement (Option 1)
• Satellite Phone Air Cell ST3100
• Sheep Skin for Pilot & Co-pilot Seats

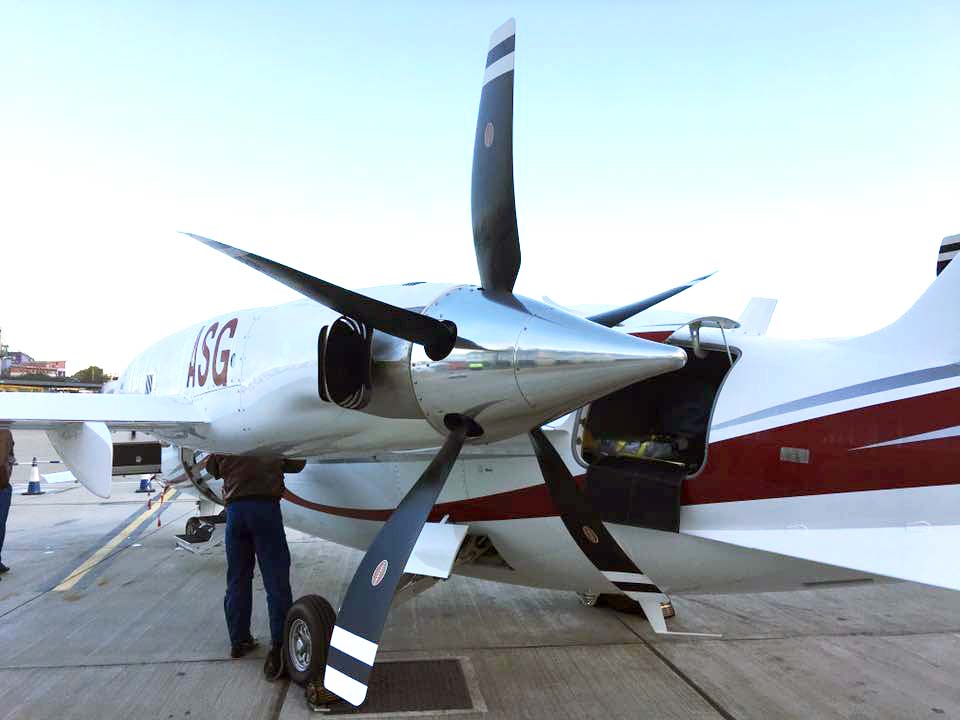

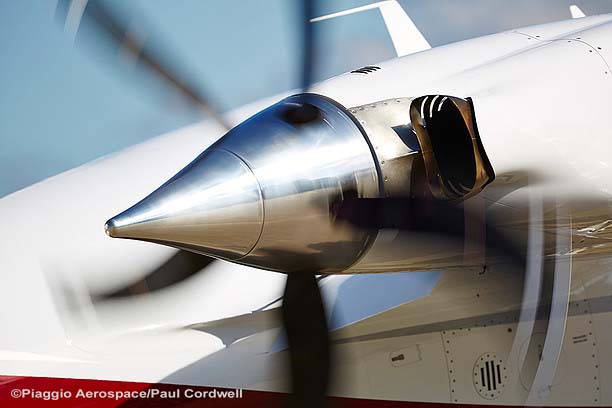

Engines

2 x Pratt & Whitney Canada PT6A-66B

• 95 / 95 TTSN
• Free enrollment on ESP available
• Full warranty on engines (Oct. 2021 or 2500 FH)
• 1,800 FH HSI
• 3,600 FH TBO

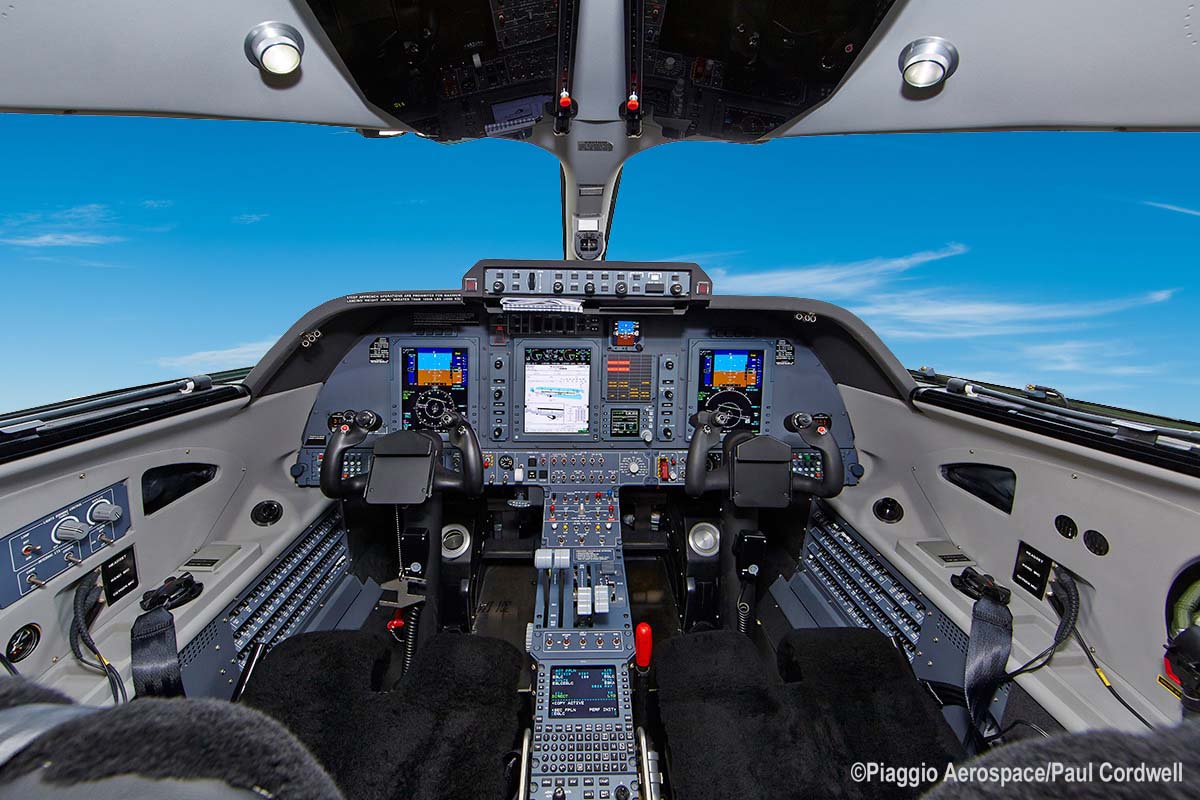

Avionics

Collins Pro-Line 21 – UPGRADE IFIS 5000

• Radio Management System – Collins RTU-4200, CDU-3000
• Dual VHF COM – Collins VHF-4000 Transceiver with Antenna with 8.33 kHz spacing
• VHF NAV 1 + ADF – Collins NAV-4000 VOR/ILS/MKR/ADF Receiver with Antennae
• VHF NAV 2 – Collins NAV-4500 VOR/ILS/MKR Receiver with Antennae
• Single DME – Collins DME-4000 (3 channel) with Antenna
• Dual Mode S Flight ID Diversity Transponder – Collins TDR-94D
• Radio Altimeter – Collins ALT-4000 (Operation to 2500 ft) with Antennae
• Turbulence Detection Weather Radar – Collins RTA-852 Color Radar with 12″ Antenna
• ACAS II – Collins TCAS 4000
• TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
• Dual Audio Panel – Baker B1045
• Dual Cockpit Speaker
• Dual hand-held Microphone
• Dual Boom/Microphone/Headset
• EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
• Flight Guidance System – Collins Dual FGC-3003 (A/P,YD and dual Flight Director included), three SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
• Single FMS – Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000
• DBU-5000
• GPS Sensor Unit – Collins GPS-4000S with full WAAS/LPV capability
• Dual ADS – Collins ADC-3000
• Dual AHRS – Collins AHC-3000 and FDU-3000
• Maintenance Diagnostic System – Collins MDC-3110
• Four Data Concentrator Unit – Collins DCU-3001
• Stand-by Cluster Instrument – L-3 Communications GH-3100
• Emergency Locator Transmitter – Artex C406
• Dual Master Annunciator
• Dual Turn & Slip Indicator
• Reversionary/Miscellaneous Panel

RVSM Compliant

Additional Equipment

• Upgrade for Integrated Flight Information Collins IFIS 5000
• Electronic Charts Collins ECH 5000
• Maps Overlay Collins OVL 5000
• ACAS II 7.1
• SBAS / LPV capability
• Provisions for ADS-B Out, CPDLC, HF, CVR
• Anti-skid braking system
• New LED Taxi & LNDG Lights
• Satellite Phone Air Cell ST3100

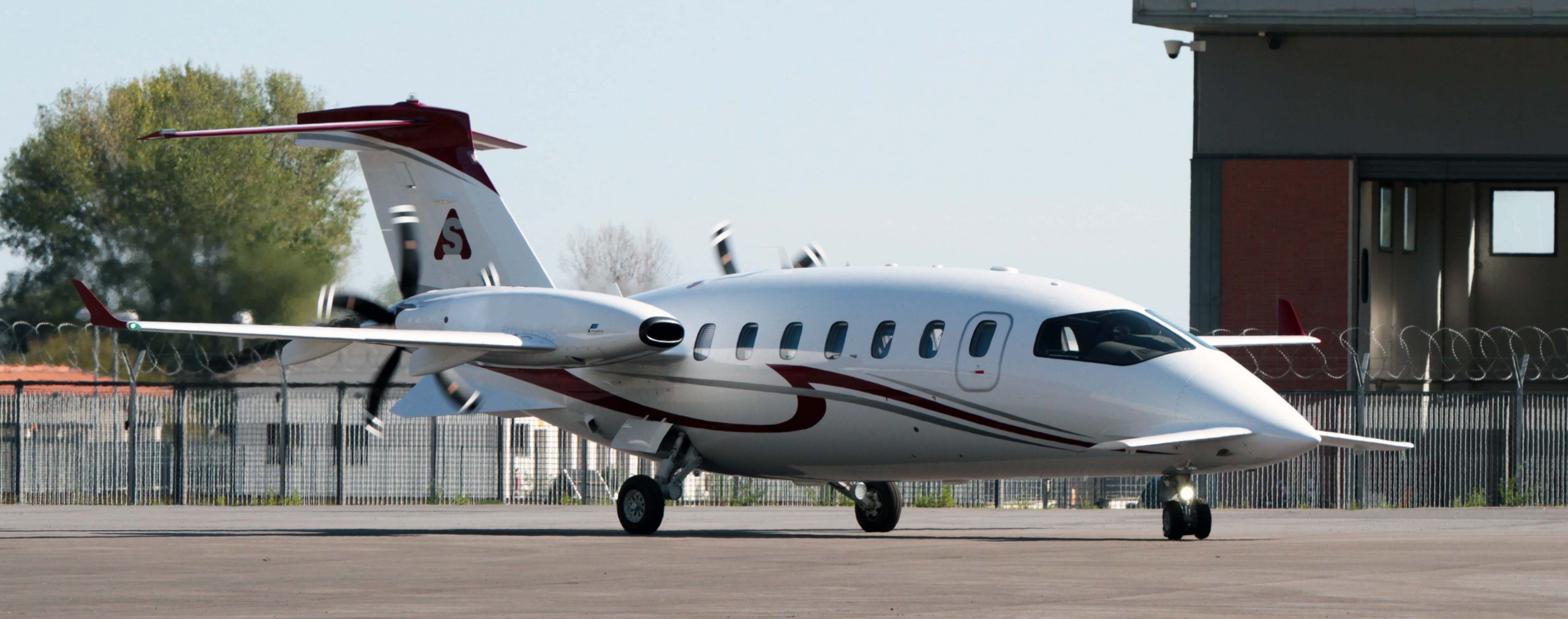

Exterior

Overall White with Red and Silver Accents

Interior

• “Option 1” Cabin Layout (7 + 1 seats)

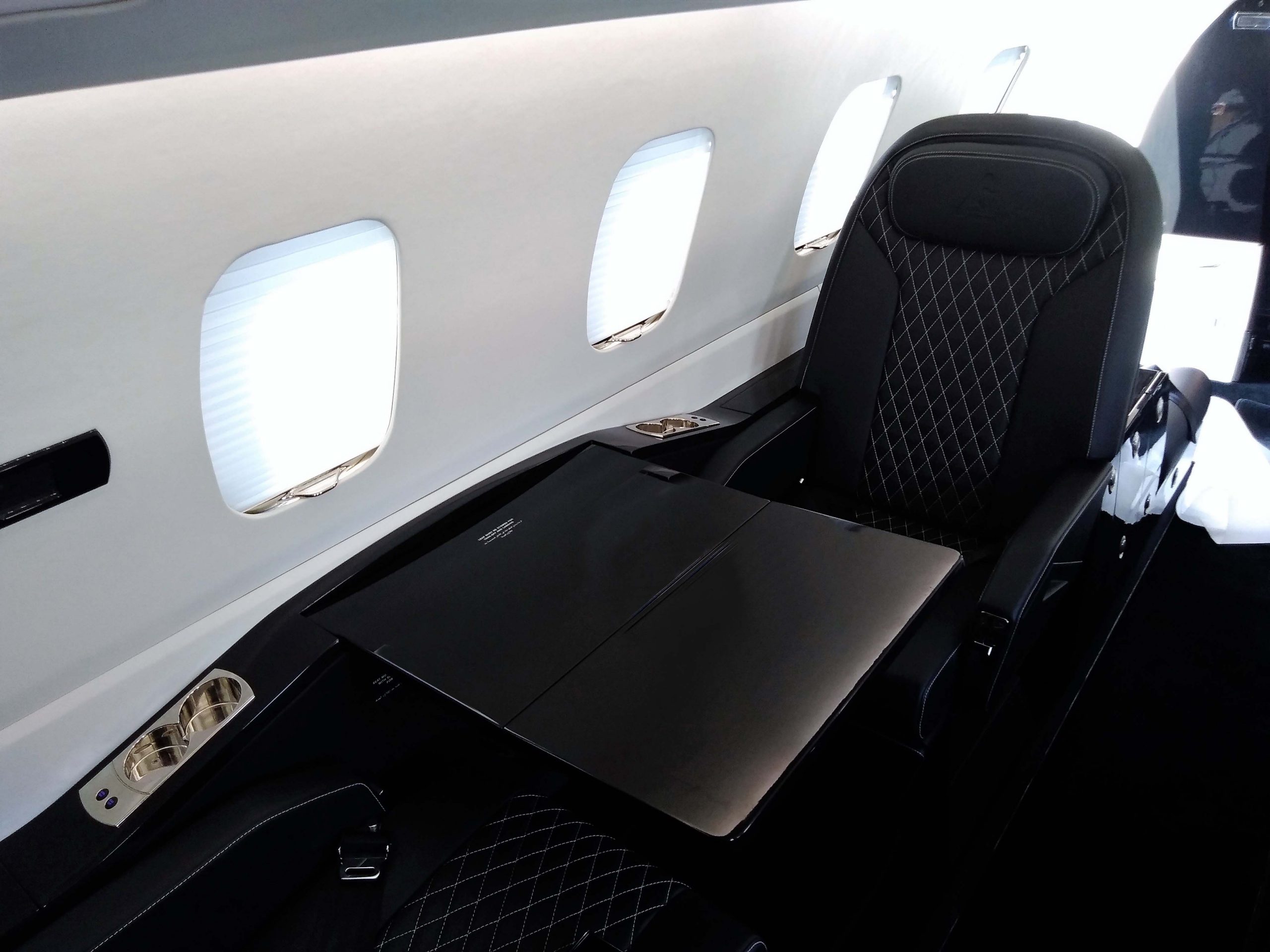

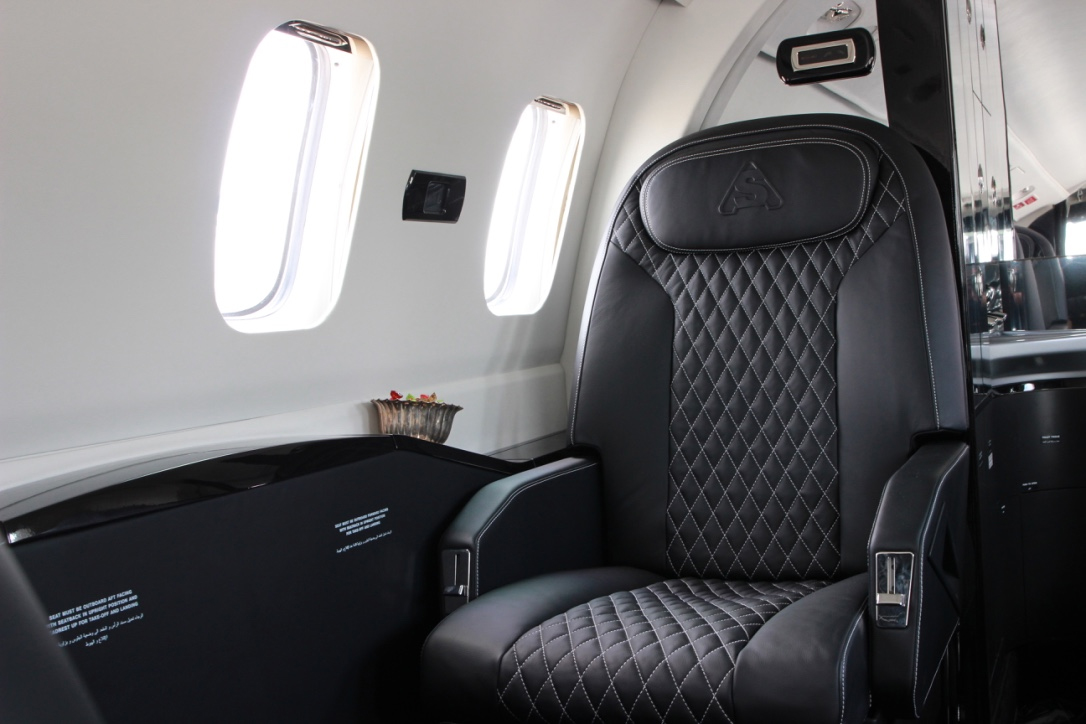

• 4 single VIP passenger seats in club arrangement
• Two-place divan + side-facing single seat with floor drawers
• Aft fully enclosed lavatory with flushing potty and belted aft auxiliary passenger seat
• Vanity Module including sink with water faucet
• Illuminated wardrobe area for hanging storage coat closet
• Dual executive tables

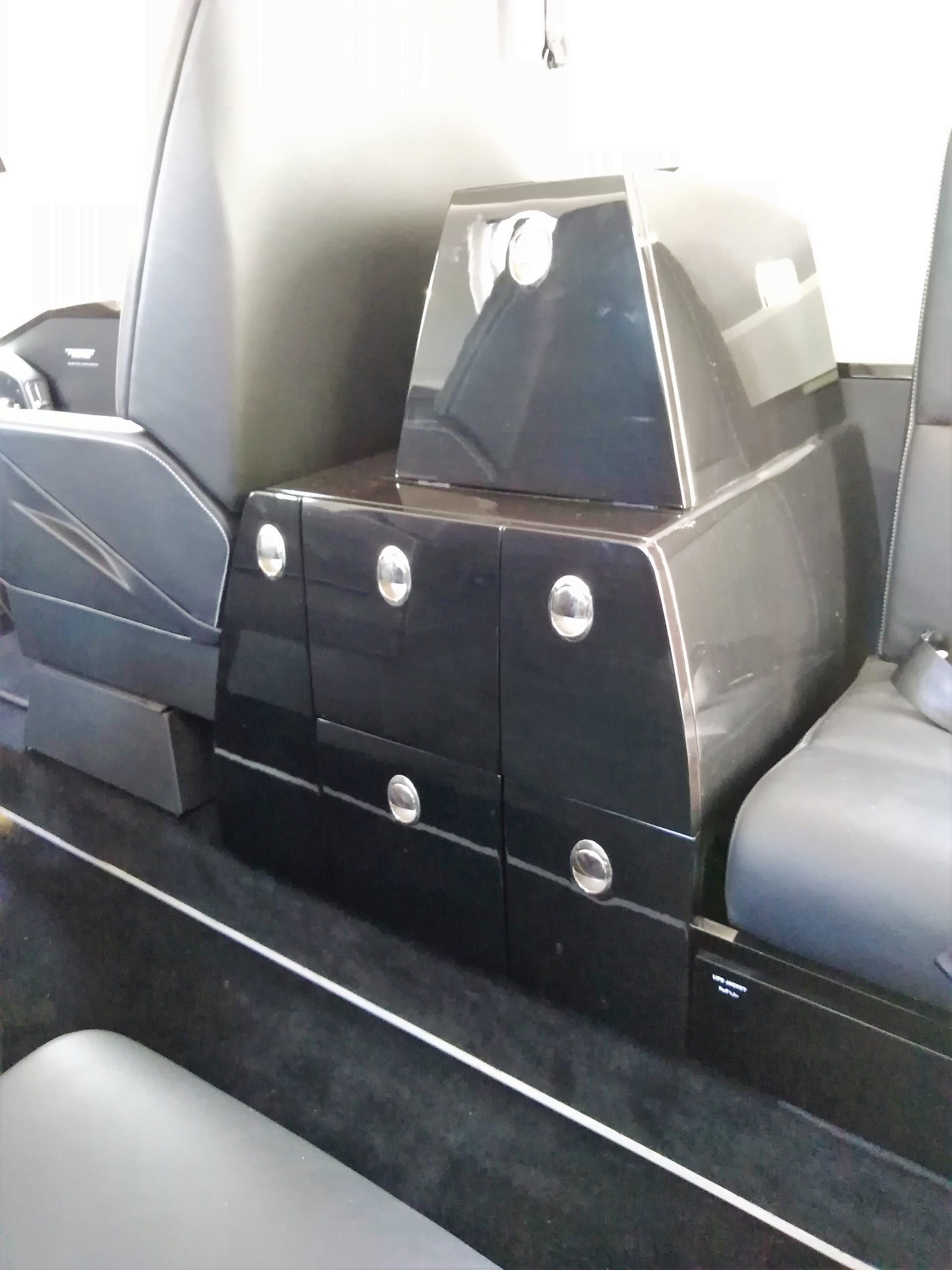

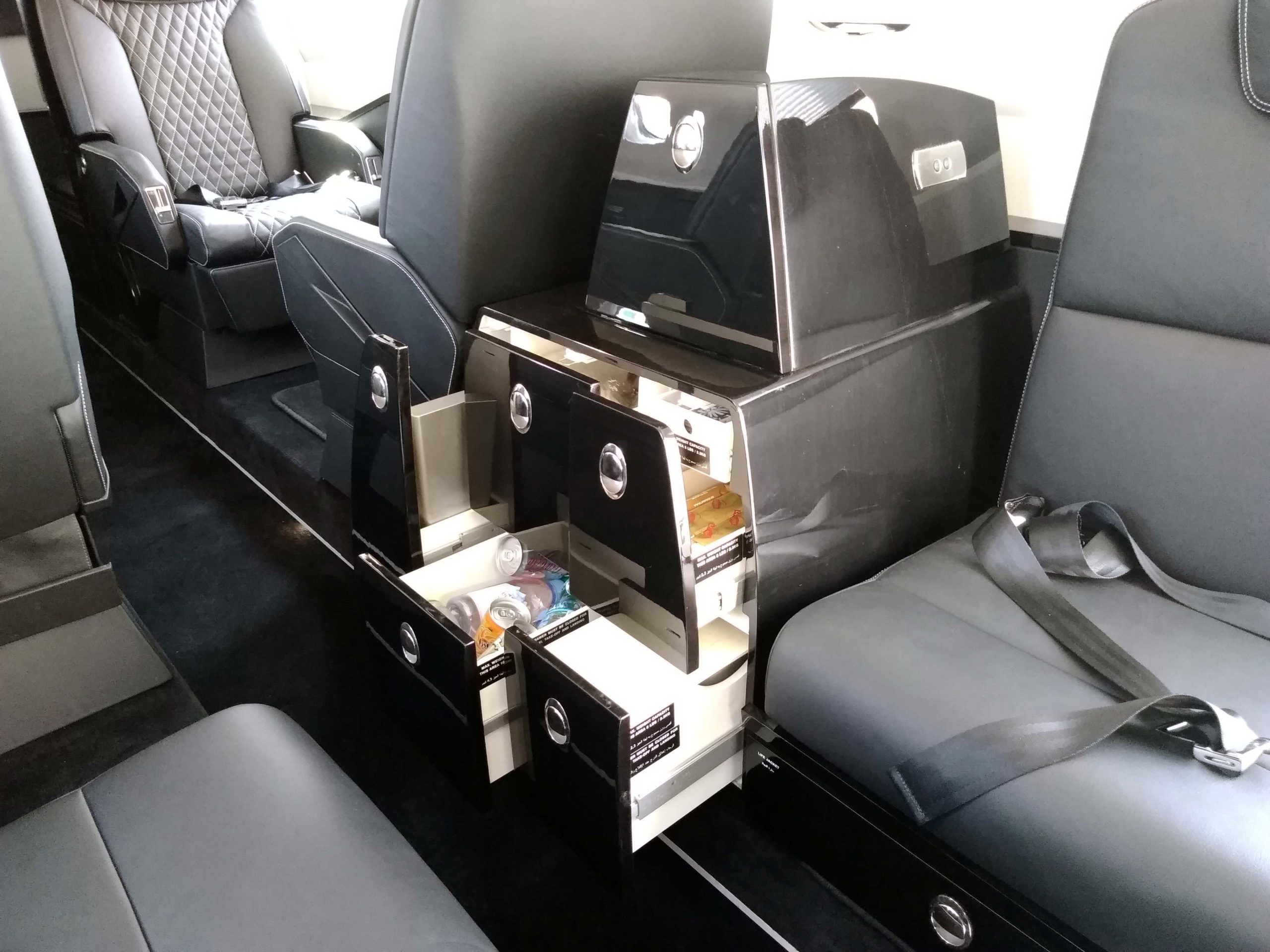

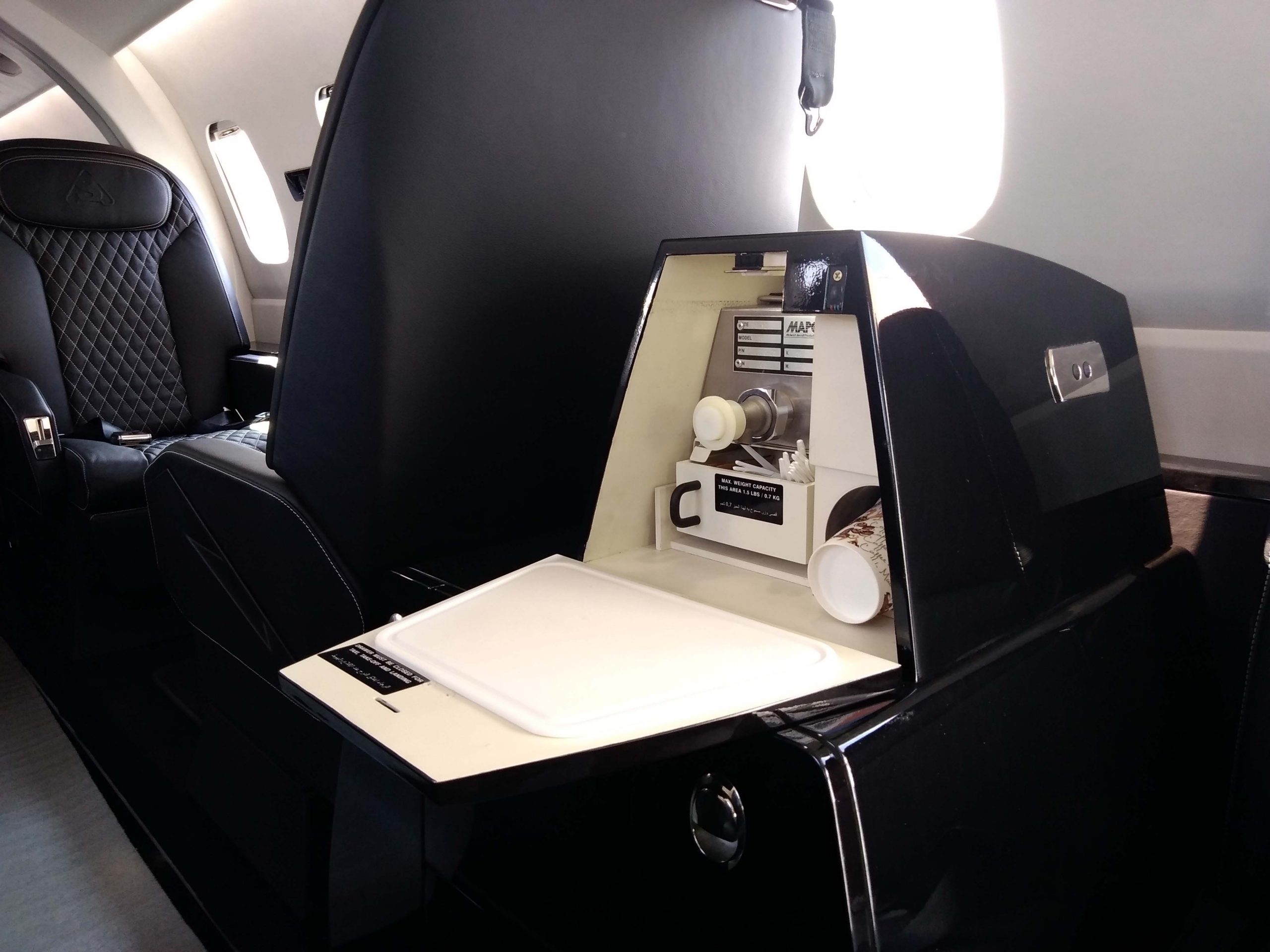

• Refreshment Cabinet with hot beverage container, ice chest, hot water dispenser and miscellaneous storage
• Ship skin on pilot seats

• Poltrona FRAU “AFRICA 30 Natural Grain” Black Leather upholstering
