2018  P.180 Avanti EVO

2018 P.180 Avanti EVO

2018 P.180 Avanti EVO

Sold
Category: Brand:

Factory New – 2018  YOM
ONLY 75 FH TT
No Damage History
Full Manufacturer’s Warranties
Collins IFIS 5000
Electronic Charts
Maps Overlay
ACAS II 7.1
SBAS / LPV capability
ADS-B Out
Anti-skid braking system
VIP  7 -Seats Option 3 Cabin Arrangement
Fold

Technical Specifications

  • TOTAL TIME
  • ENGINES 2 x Pratt & Whitney Canada PT6A-66B  75 / 75 TTSN Free enrollment on ESP available Full 5-Year Warranty on engines…
  • AVIONICS Collins Pro-Line 21 - UPGRADE IFIS 5000   Radio Management System – Collins RTU-4200, CDU-3000 Dual VHF COM - Collins…
  • SEATS 7 + 1
  • RANGE
  • CABIN DOOR

Headlines

  • Factory New – 2018  YOM
  • ONLY 75 FH TT
  • No Damage History
  • Full Manufacturer’s Warranties
  • Collins IFIS 5000
  • Electronic Charts
  • Maps Overlay
  • ACAS II 7.1
  • SBAS / LPV capability
  • ADS-B Out
  • Anti-skid braking system
  • VIP  7 -Seats Option 3 Cabin Arrangement
  • Fold-Down LCD Cabin Monitor

Main Features

  • Factory New Aircraft
  • Full warranties  (Airframe + Engines + Avionics)
  • Upgrade for Integrated Flight Information – Collins IFIS 5000
  • Electronic Charts Collins ECH 5000
  • Maps Overlay Collins OVL 5000
  • ACAS II 7.1 – Collins TCAS 4000
  • SBAS / LPV capability
  • ADS-B Out
  • Anti-skid braking system

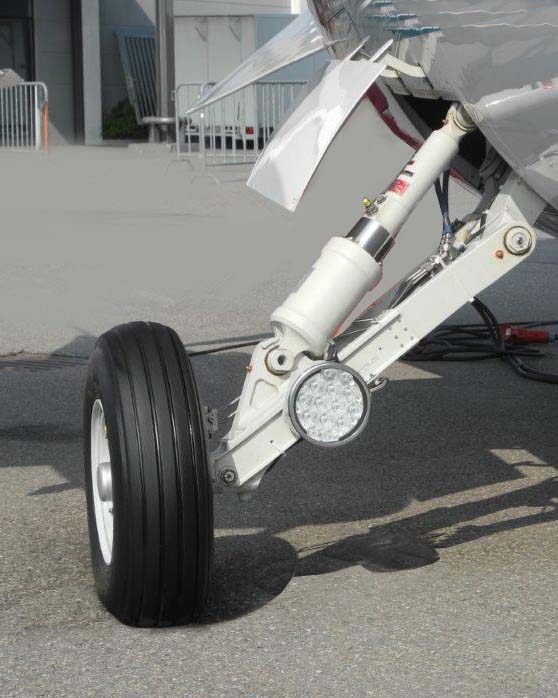

  • New LED Taxi & LNDG Lights
  • VIP – 7 Seats Cabin Arrangement (Option 3)
  • Satellite Phone Air Cell ST3100
  • Fold-Down LCD Cabin Monitor
  • Sheep Skin for Pilot & Co-pilot Seats

Engines

2 x Pratt & Whitney Canada PT6A-66B

  • 75 / 75 TTSN
  • Free enrollment on ESP available
  • Full 5-Year Warranty on engines (2023 or 2500 FH)
  • 1,800 FH HSI
  • 3,600 FH TBO

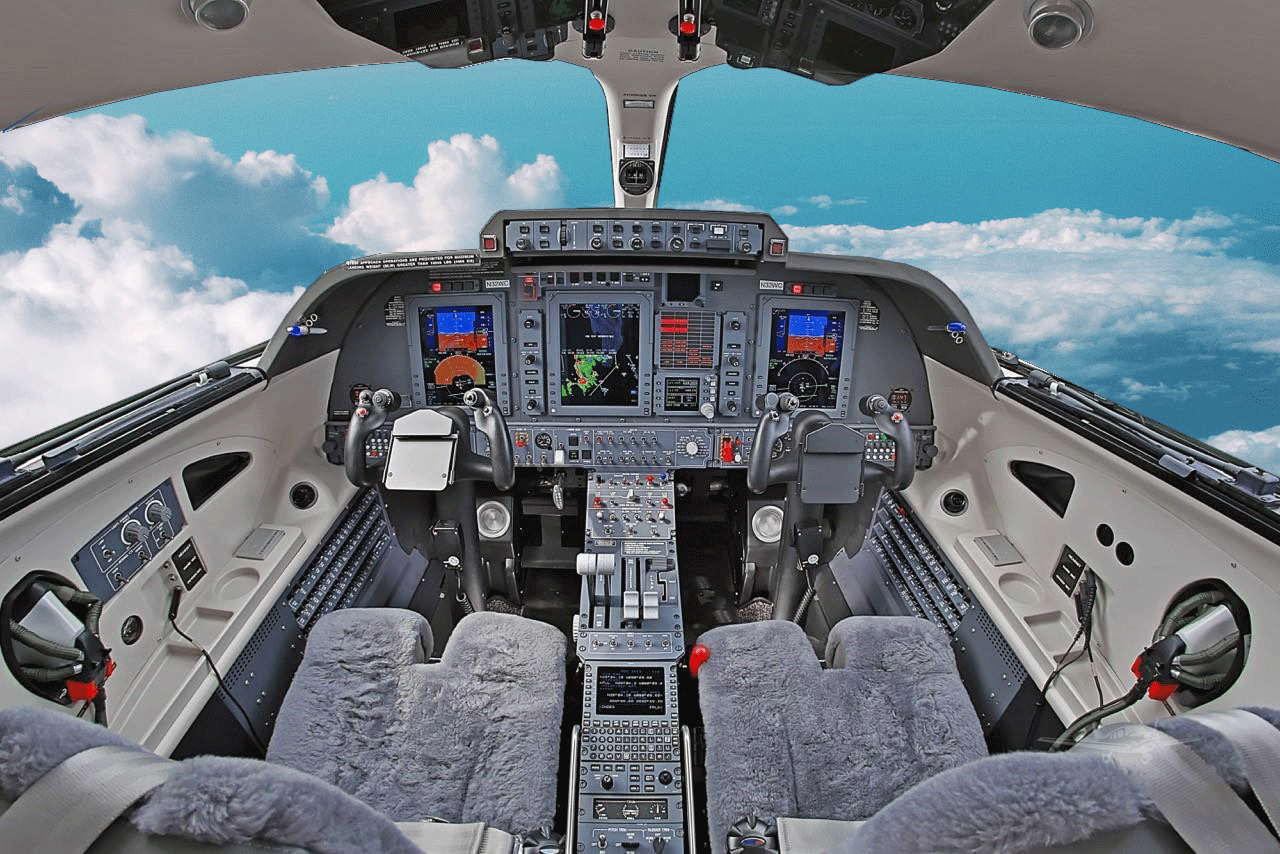

Avionics

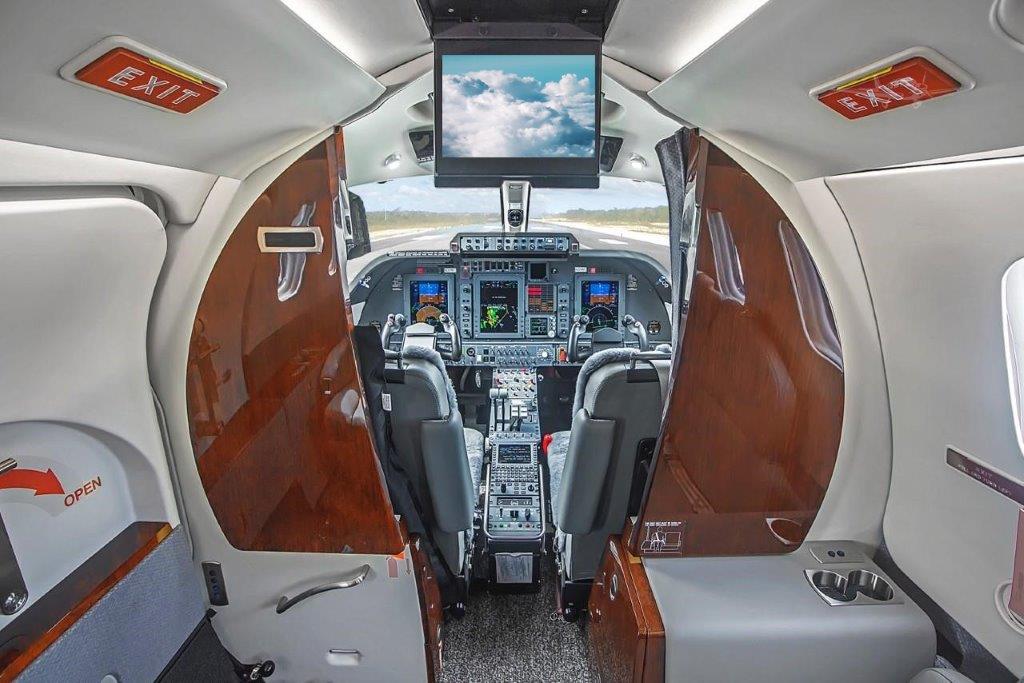

Collins Pro-Line 21 – UPGRADE IFIS 5000



  • Radio Management System – Collins RTU-4200, CDU-3000
  • Dual VHF COM – Collins VHF-4000 Transceiver with Antenna with 8.33 kHz spacing
  • VHF NAV 1 + ADF – Collins NAV-4000 VOR/ILS/MKR/ADF Receiver with Antennae
  • VHF NAV 2 – Collins NAV-4500 VOR/ILS/MKR Receiver with Antennae
  • Single DME – Collins DME-4000 (3 channel) with Antenna
  • Dual Mode S Flight ID Diversity Transponder – Collins TDR-94D
  • Radio Altimeter – Collins ALT-4000 (Operation to 2500 ft) with Antennae
  • Turbulence Detection Weather Radar – Collins RTA-852 Color Radar with 12″ Antenna
  • ACAS II – Collins TCAS 4000
  • TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
  • Dual Audio Panel – Baker B1045
  • Dual Cockpit Speaker
  • Dual hand-held Microphone
  • Dual Boom/Microphone/Headset
  • EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
  • Flight Guidance System – Collins Dual FGC-3003 (A/P,YD and dual Flight Director included), three SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
  • Single FMS – Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000
  • DBU-5000
  • GPS Sensor Unit – Collins GPS-4000S with full WAAS/LPV capability
  • Dual ADS – Collins ADC-3000
  • Dual AHRS – Collins AHC-3000 and FDU-3000
  • Maintenance Diagnostic System – Collins MDC-3110
  • Four Data Concentrator Unit – Collins DCU-3001
  • Stand-by Cluster Instrument – L-3 Communications GH-3100
  • Emergency Locator Transmitter – Artex C406
  • Dual Master Annunciator
  • Dual Turn & Slip Indicator
  • Reversionary/Miscellaneous Panel

RVSM Compliant

Additional Equipment

  • Integrated Flight Information
  • Collins IFIS 5000  Electronic Charts
  • Collins ECH 5000 Maps Overlay
  • Collins OVL 5000 ACAS II 7.1
  • Collins TCAS 4000
  • WAAS / LPV capability
  • ADS-B Out
  • Provisions for CPDLC, HF
  • L3 Communications 120 Minute CVR
  • Anti-skid braking system
  • New LED Taxi & LNDG Lights
  • Satellite Phone – Air Cell ST3100
  • Toilet with Vanity Module
  • 10.2 Inch Fold-Down LCD Cabin Monitor
  • USB Cabin Charging Stations
  • Polished Main Wing Leading Edges
  • Lead Acid Battery
  • Sheep Skin for Pilot & Co-pilot Seats

Exterior

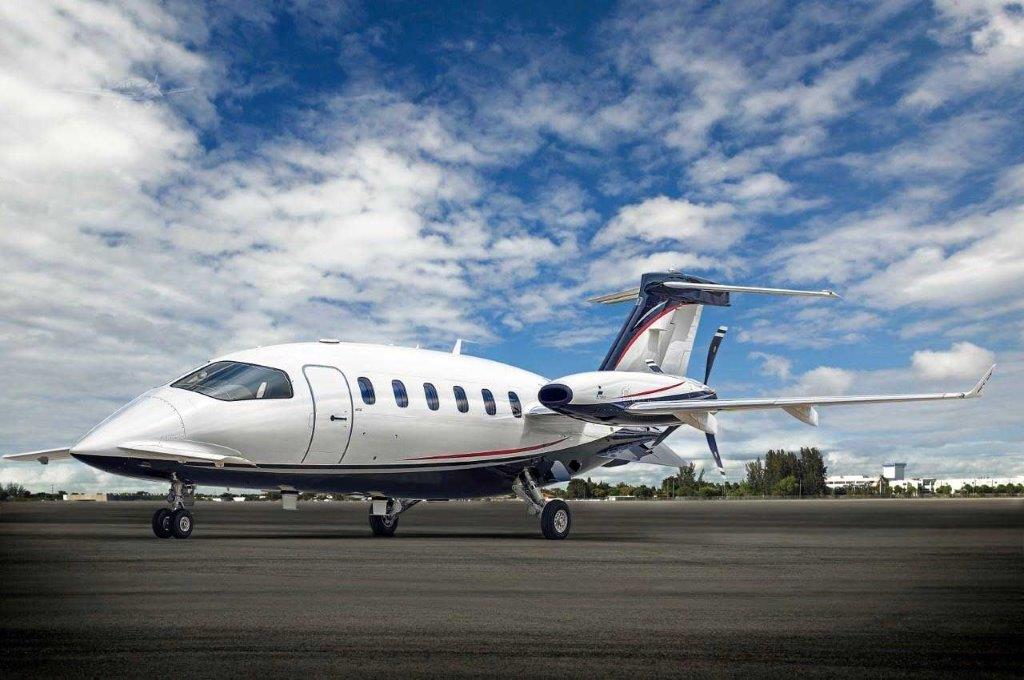

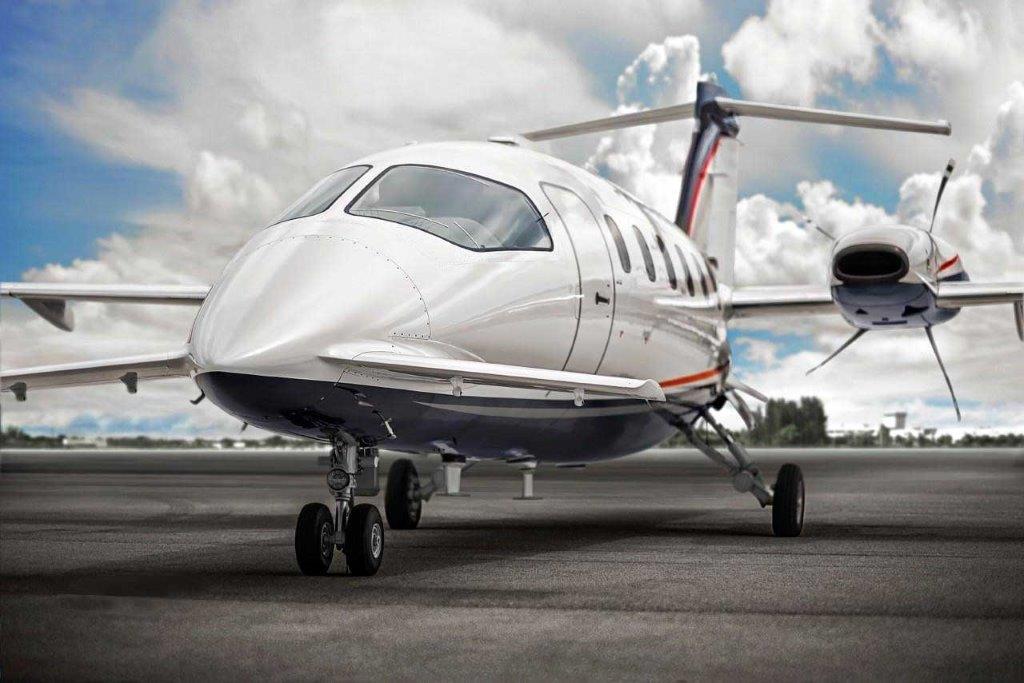

Overall Matterhorn White with Sunfast Red, Superjet Black and Bright Aluminum Stripes



Interior

  • 7 + 1 Corporate “Atmosfera” Cabin Layout in Poltrona Frau Leather

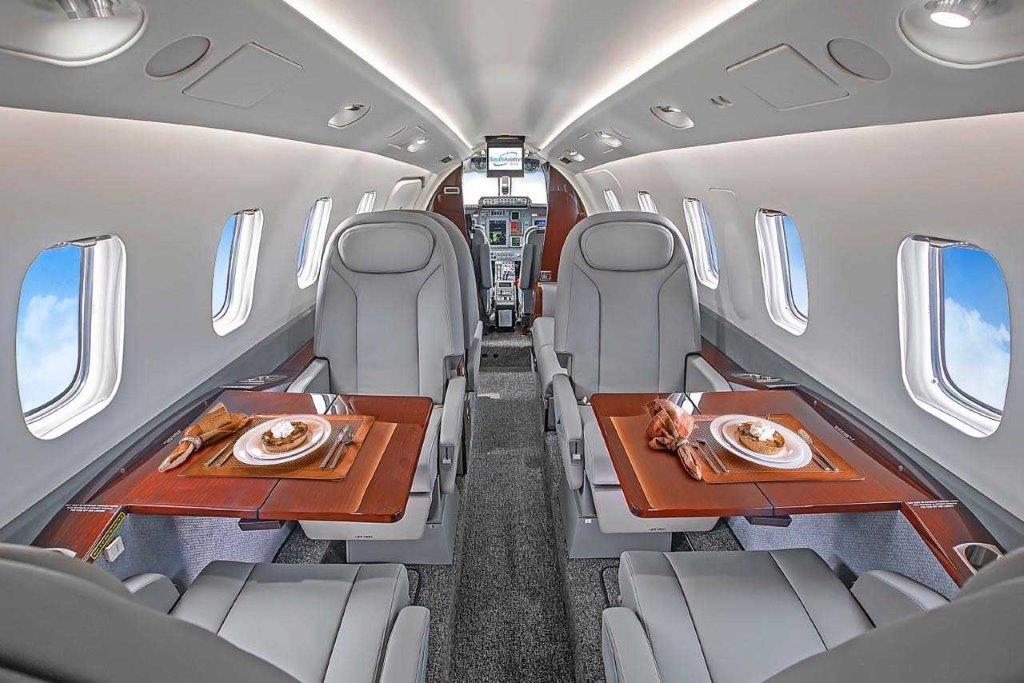

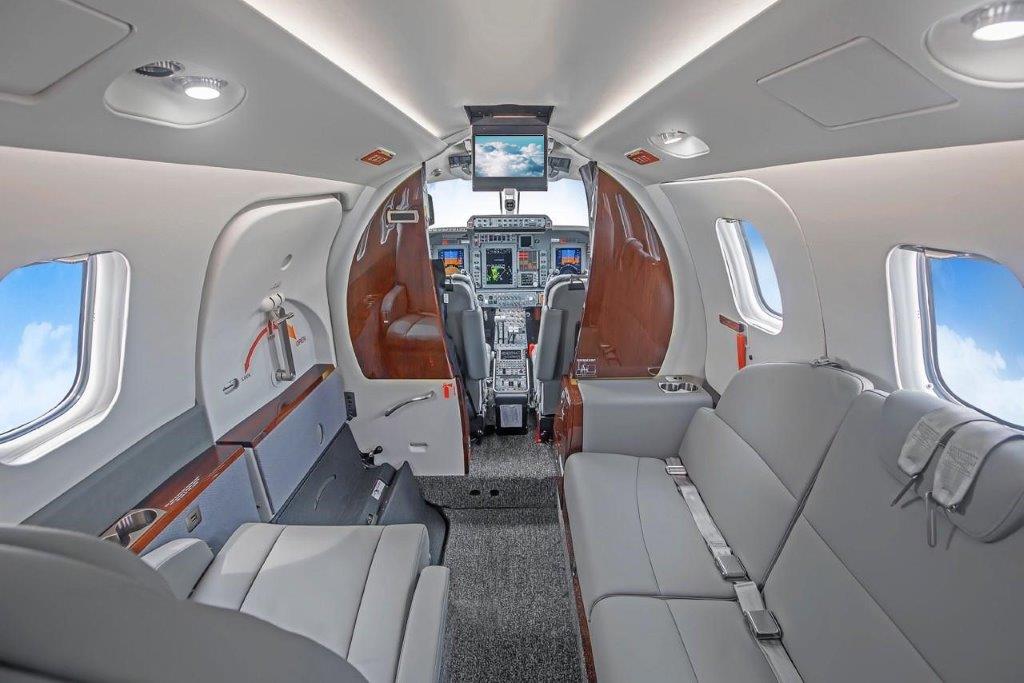

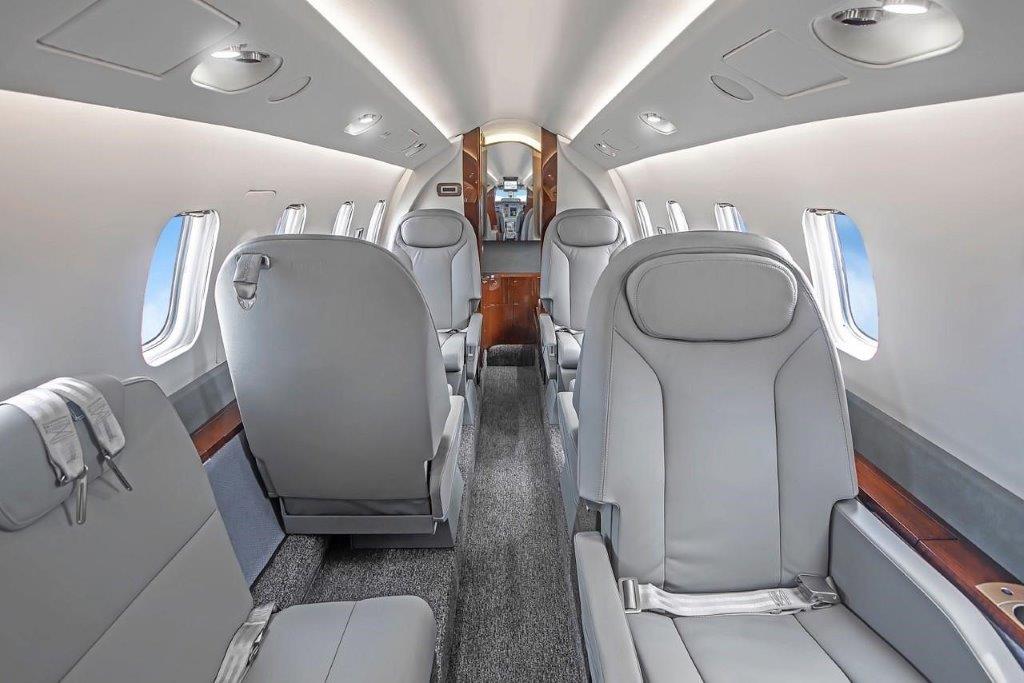

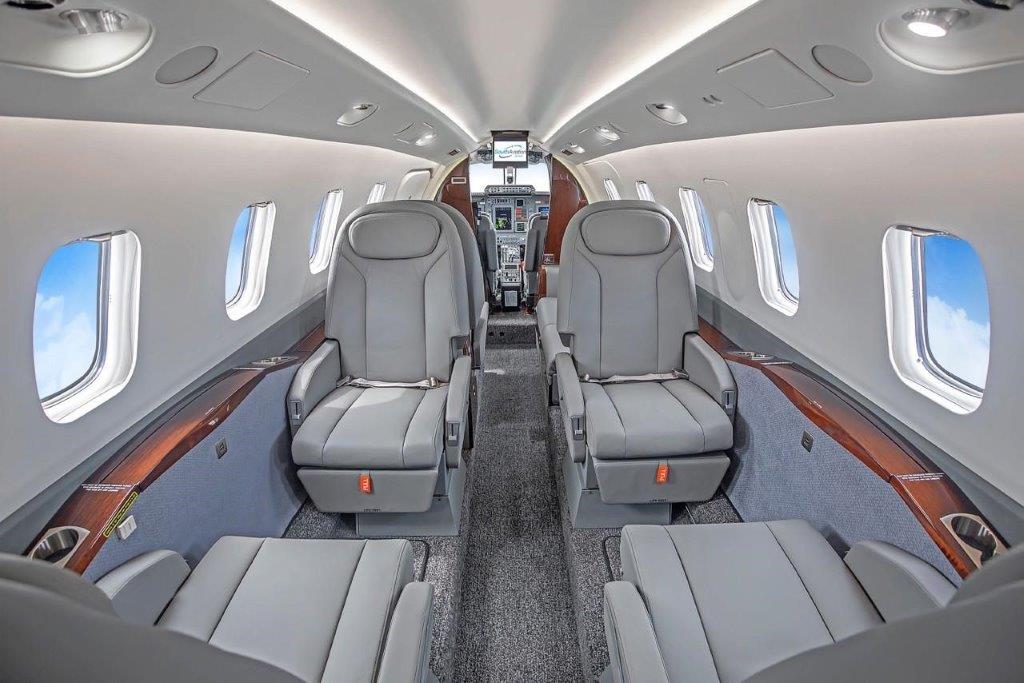

  • Seven VIP seats with a four-seat Club arrangement (full recline, lowerable inboard armrest), one forward facing seat and one side-facing two-place divan with relevant floor drawers.
  • Two drawer pyramid cabinet installed behind LH fwd facing seat.
  • Two drawer RH rear bulkhead cabinet.
  • Lavatory toilet seat belted and certified for takeoff and landing
